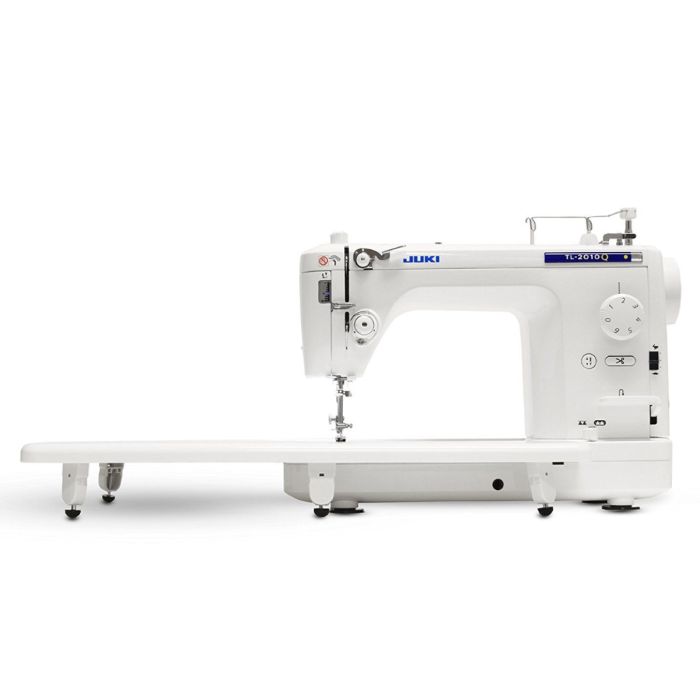

The Juki TL2010Q Quilting Machine is Juki’s updated quilting and home decor sewing machine. The powerful 1500 stitch per minute Juki TL2010Q Quilting Machine features a low vibration due to the aluminum die cast frame and automatic thread cutting. The LED lights and one pedal control for speed and trimming system complement this semi industrial Juki TL2010Q Quilting Machine.
Juki TL2010Q Quilting Machine Features:
- Updated with LED lights
- Throat space is 9" from the needle to the right and 6 3/4" top to bottom
- One pedal operation
- Up to 1500 spm
- Aluminum die cast arm and bed
- Extension table
- Light weight and portable
- Supplied with HA type needles.
- Longer arm and sewing bed
- Basic sewing functions operated by foot pedal
- Automatic bobbin winder
- Small screwdriver
- T screwdriver
- Lint brush
- Bobbins
- Spool cap
- Oiler
- Needle pack
- Straight stitch foot
- Power cord
- Instruction manual
- Knee lever
- Dimensions: 17.8 x 8.6 x 13.8 Inches
- Stitch length: Max. 6mm
- Lift of the presser foot:
- - By Lever, Max. 9mm
- - By Knee Lifter, Max. 12mm
- Needle: HAx1 (130/705H) #7-#18 (HLx5#9-#16)
- Weight(Machine only): 11.5kg
- Rated Voltage/Power consumption: 120V/1.4A, 100W
- Power consumption of the lamp: 12V, 3W
- Auxiliary table (Dimensions): 590 x 277 (mm)
- Horizontal axis full rotary hook
Dimensions of sewing throat and table:
- Throat area: 8.5 inches long x 5.9 inches tall
- Auxiliary table: 12 inches wide x 23 inches long
Included Accessories with the Juki TL2010Q
- Foot controller
- Auxiliary table
- Exclusive screwdriver
- Screwdriver (small)
- Cleaning brush
- Bobbins (4pcs.)
- Oiler
- Needles (HAx1)
- Spool cap
- Sewing machine cover
- Power cord
- Knee lifter lever
- Zipper attaching foot
- Even feed feed presser foot
- 1/4 Quilting foot
Juki America, Inc. warrants this Product for a period of five (5) years against defective materials and/or workmanship, two (2) years on motors, light assembly, wiring, switches, speed control and electrical components.

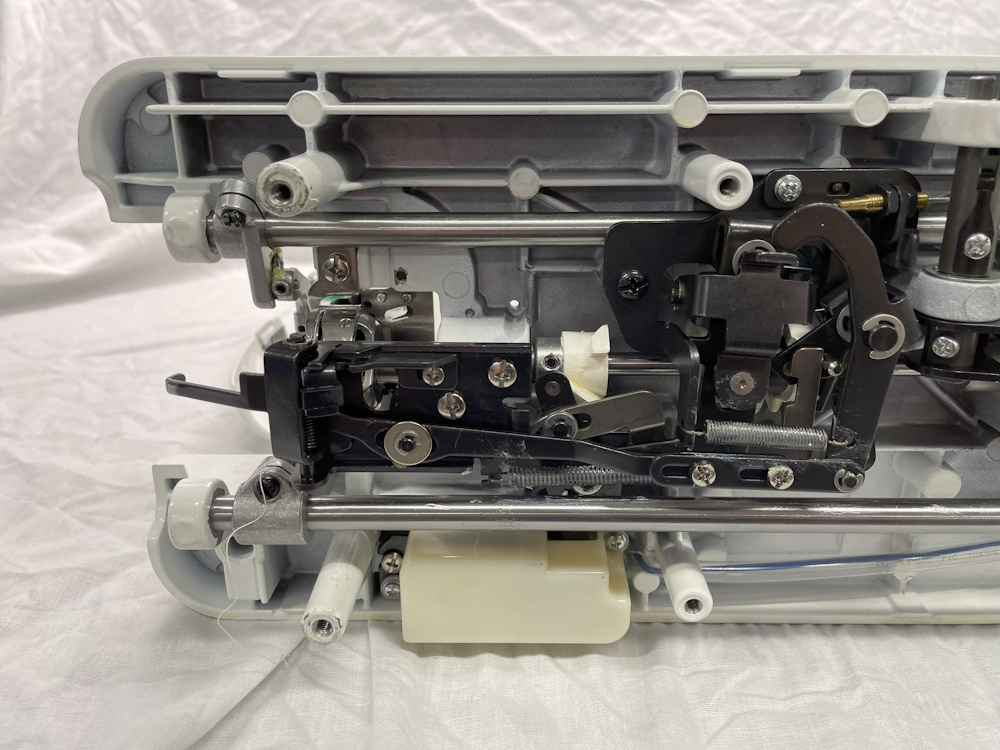

JUKI TL Series - What's inside!
The internal components of the JUKI TL series machines are here for you to see.
Let's start with some basics regarding the construction.
1) Manufactured by JUKI at a JUKI owned and operated plant for home sewing machines and sergers.
JUKI Industrial standards are maintained in all of JUKI's manufacturing facilities.
2) Cast aluminum housing. Strength and durability by design.

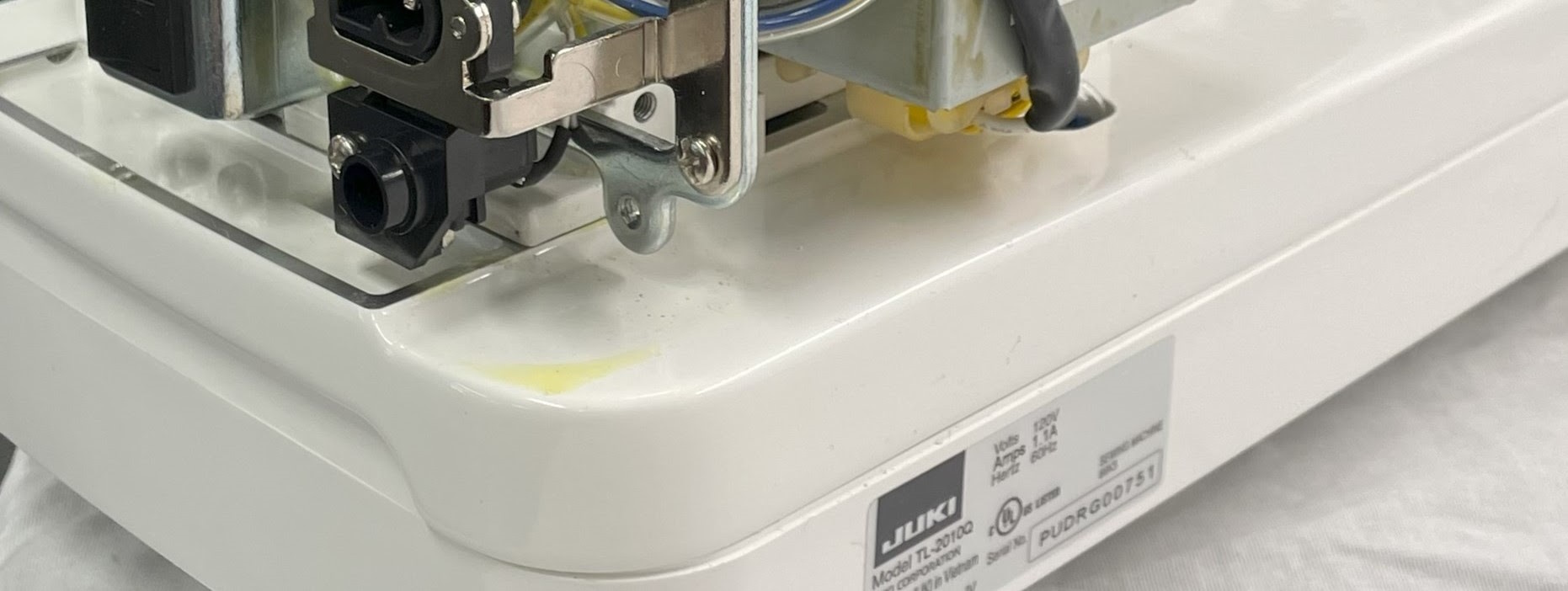

3) Removable plastic lower housing for access, facilitate easier servicing when needed.

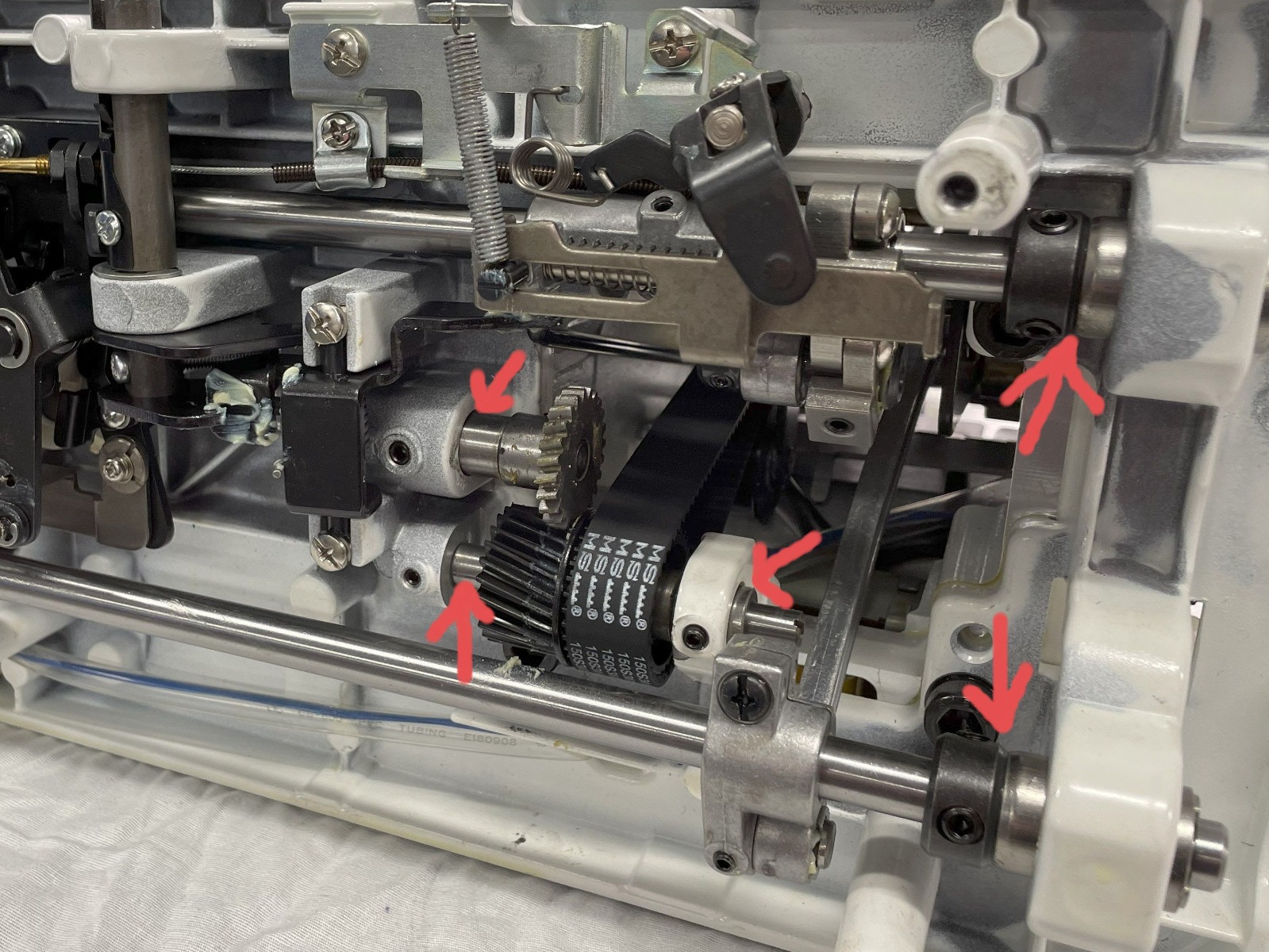

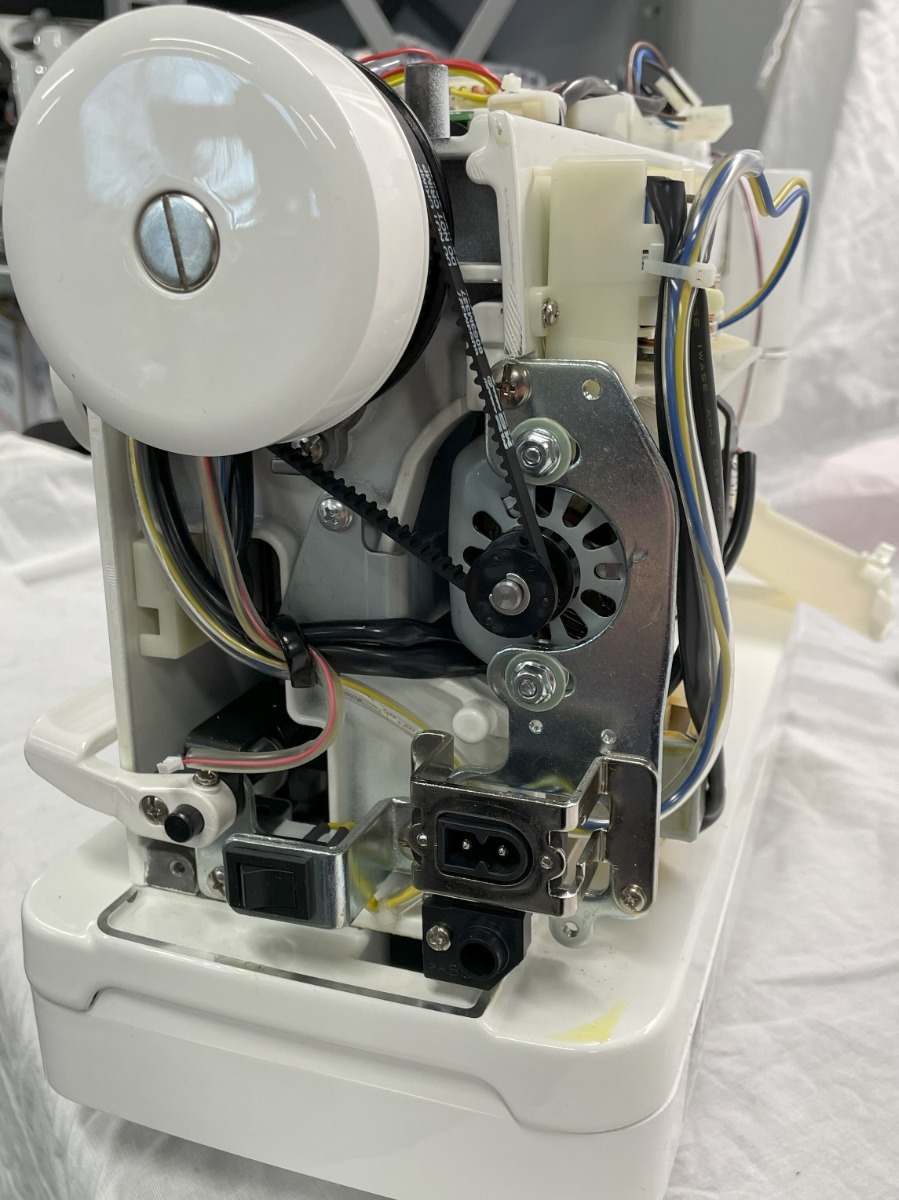

4) Power and synchronization are provided via brushless DC motor for power (torque) and durability and cog belts (avoids belt stretch and slipping related issues and improves control)

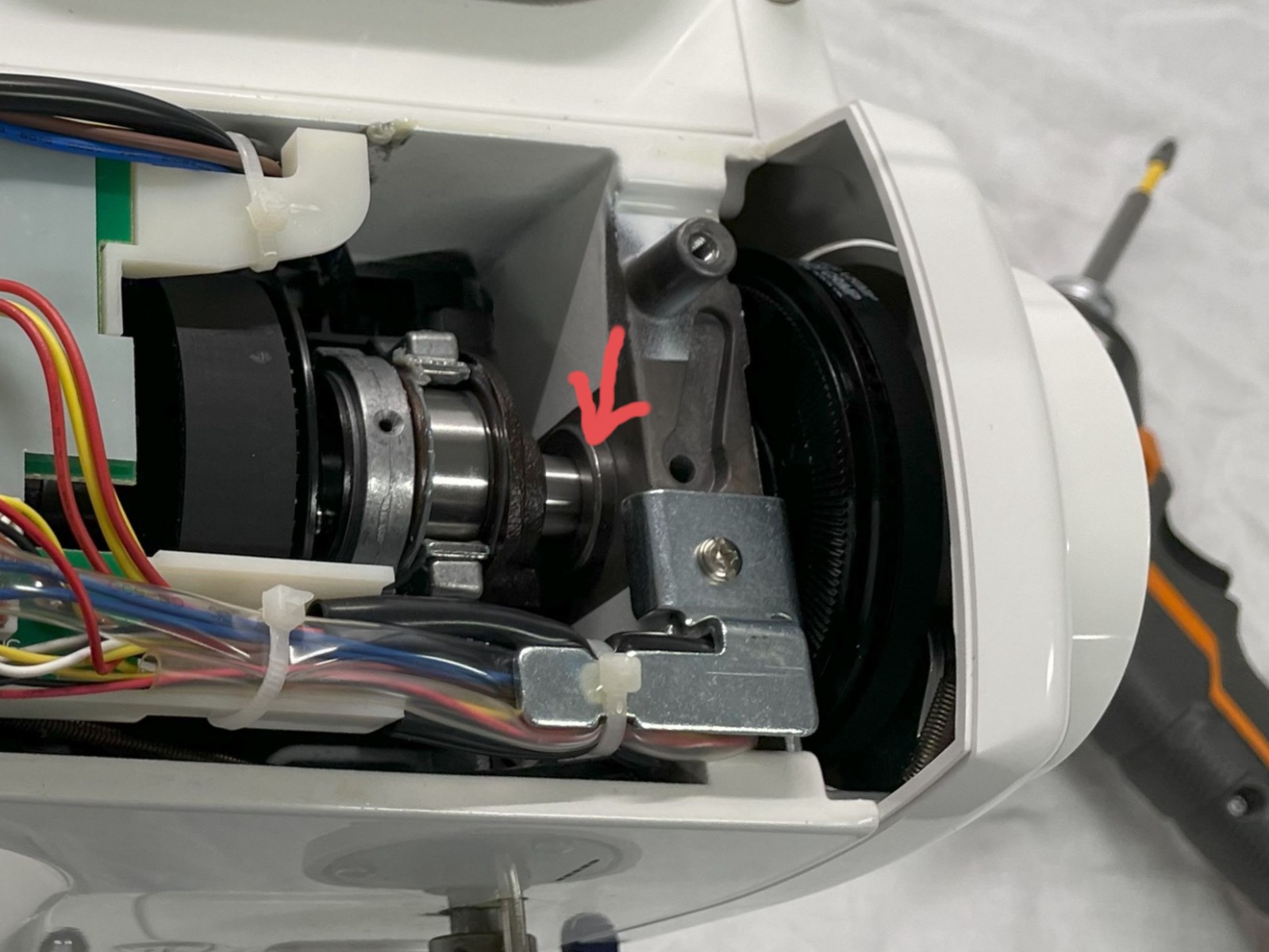

5) All shafts supported in bearings mounted or incorporated into the cast aluminum frame.
7) Electronics mounted in plastic housing. (Reduces vibration and static charge from being mounted to metal where moving metal parts create friction)
