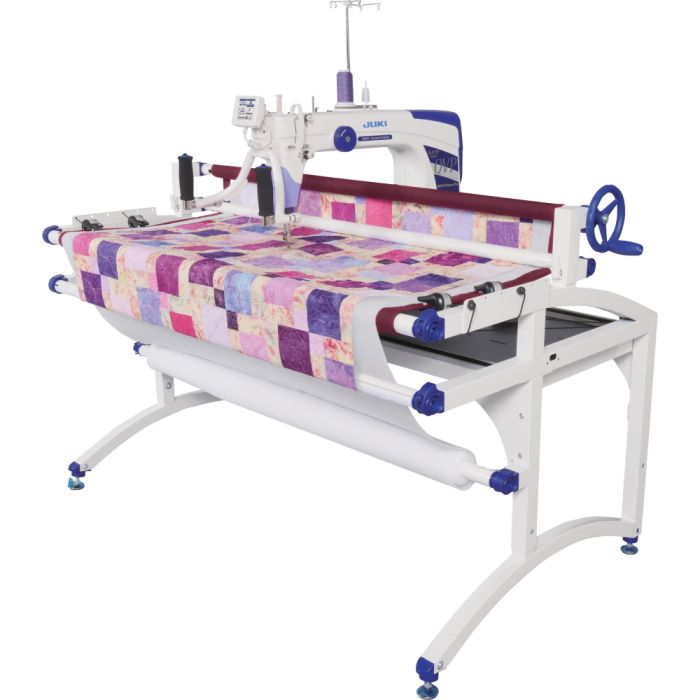

Juki J-350QVP Longarm Quilting Machine with Frame
Juki Miyabi Juki J-350QVP Longarm Quilting Machine with Frame with SmartStitch Stitch Regulator
The Juki J-350QVP Longarm Quilting Machine with Frame is the only Juki quilter with automatic thread trimmers and built-in JUKI SmartStitch stitch regulator system. Up to 50″ wide table (with optional leafs) on adjustable height metal stand with wood top and leaf for the left or right side, 30″ overall depth, made in Japan. . Juki is the number 1# manufacturer of professional, industrial sewing products.
Features
Choose the size of frame that works best for your space. Frame sizes are 5 foot, 7 foot, and 10 Foot
JUKI SmartStitch: Stitch Regulator System Visibility
JSS makes it possible to produce accurate, precise stitching at any speed while quilting. When you select your stitch mode, the J-350QVP image sensors precisely read movement keeping stitch lengths perfect.
Direct Drive Technology
Direct drive motor allows for smooth, efficient operation while quilting. Low maintenance with hook oiling when needed. Industrial direct drive motor technology made in Japan.
Bobbin Estimate Settings
A red indicator lIght appears when the amount of the bobbin thread remaining is measured at 20% allowing you to finish a row or design and prevent unexpected quilting interruptions.
Large Quilting Space
18” long x 10” high large throat space is the perfect workspace for any size quilt. The 10 inch height and directional lighting increase your view around the stitching area allowing freedom to quilt your creative designs.

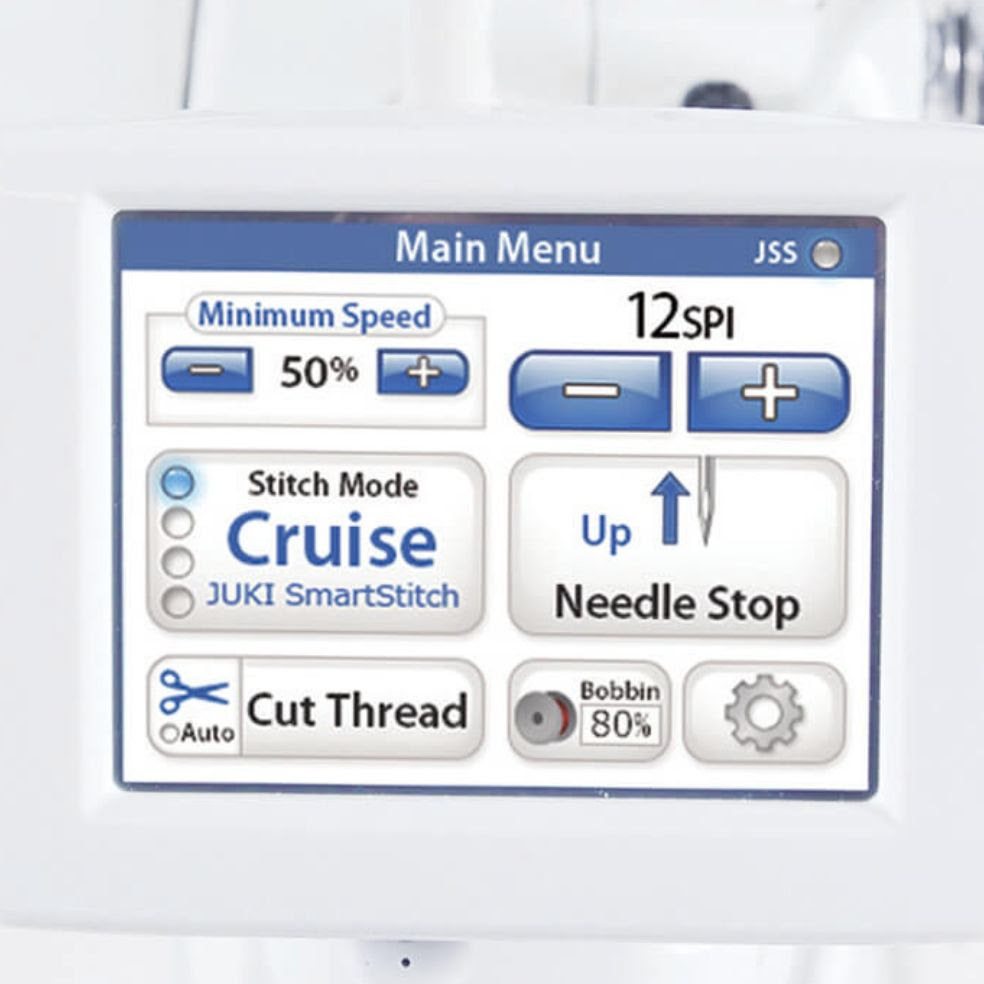

Large Color LCD Touch Screen
The touch screen display indicates JSS mode, LED light settings, speed control, stitch length, needle up/down, bobbin estimate settings, automatic or manual thread trimming, and more.

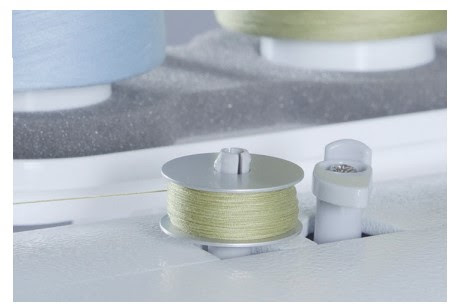

Built-in Bobbin WInder
Built-in bobbin winder operates with an independent motor. Quickly fill full capacity M size bobbins with your favorite thread ready to complete your project
Ergonomically Positioned Auxiliary Hand Wheel
Convenient, easy reach hand wheel is located on the right side of the sewing head for precise needle placement.
Ruler Compatible Standard Presser Foot
Quilting foot compatible with ¼” longarm quilt rulers
Push Button Handle Bar Controls
Start or stop the machine with your right handle button. Control the needle up or down position with the left handle button. Gliding the J-350QVP over large work is a breeze.
Adjustable Front Handle Bars
Front handle bars with padded hand grips can be adjusted to fit your ergonomic preference. Adjust your handles horizontally, vertically or anywhere in between! This feature gives you a customized position for comfortable quilting from start to finish
Laser Guided Light
The adjustable laser light can be easily positioned to efficiently follow pantographs or patterns while quilting. *Optional Rear Handles
Directional Bright LED Lighting
High intensity LED lights located above the needle with the addition of high intensity LED lights directed toward your quilting area.
4 Built In Stitch Modes
- Cruise: Free-motion quilting with JSS control
- Precise: Free-motion quilting with JSS control when using a quilting ruler
- Baste: Tacking or basting with JSS control
- Manual: Free-motion quilting without JSS control
Specifications
Sewing Speed: Max. 2,200 spm
Needle bar stroke: 35mm
Presser Foot Lift: 5.5 mm
GB 134R
Bobbin: Double capacity “M” style
Drive System: Main shaft, direct drive
Motor: AC servo motor
Working Area: 457mm (long) x 254mm (high) (18″ x 10″)
Machine Weight: 26 kg (57lbs)
Main Table: 900x855mm (35.4″ x 33.7″)
Optional Extension: 400 x 855mm (15.7″ x 33.7″) each
Machine Head Made in Japan by Juki
Bobbins
Genuine Juki M size Longarm Bobbins. Designed to perfectly fit your JUKi Longarm machine, with its built in Bobbin Winder and Thread Cutter
Included Accessories:
- Bobbin case
- 4 Bobbins
- Needles (134R size #18)
- Screwdriver
- Small screwdriver
- Cleaning brush
- Spool cap
- Thread guide pin
- Power cord
- Oil can
Manufacturer's Warranty:
- 5 Years Against Mechanical Defects
- 2 Years Against Electrical Defect
- 90 Days Adjustments on Defects in Material or Workmanship.
Weight of sewing machine: 26 kg. 57 Pounds
Rated power supply / Power consumption: 120V/140W 60Hz

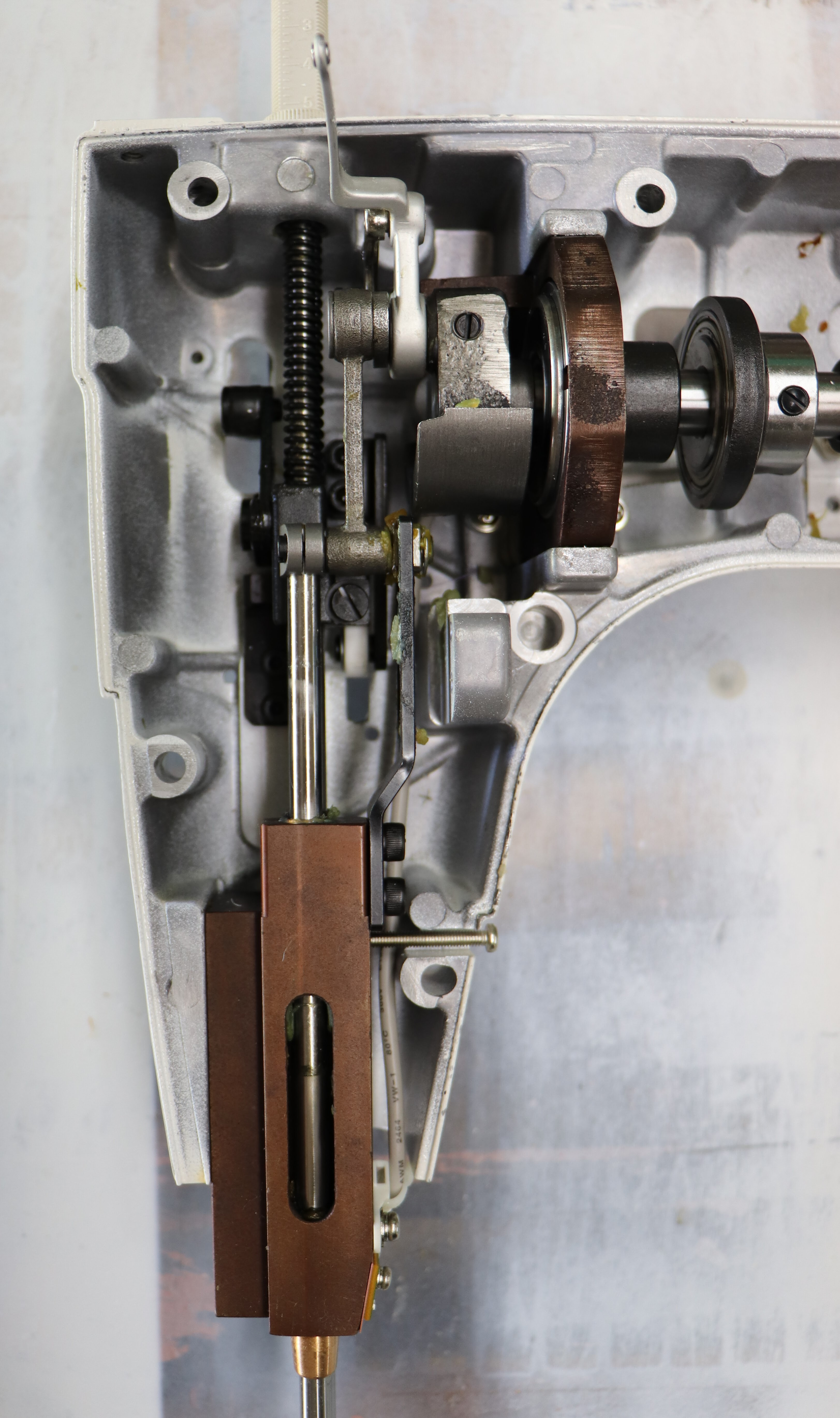

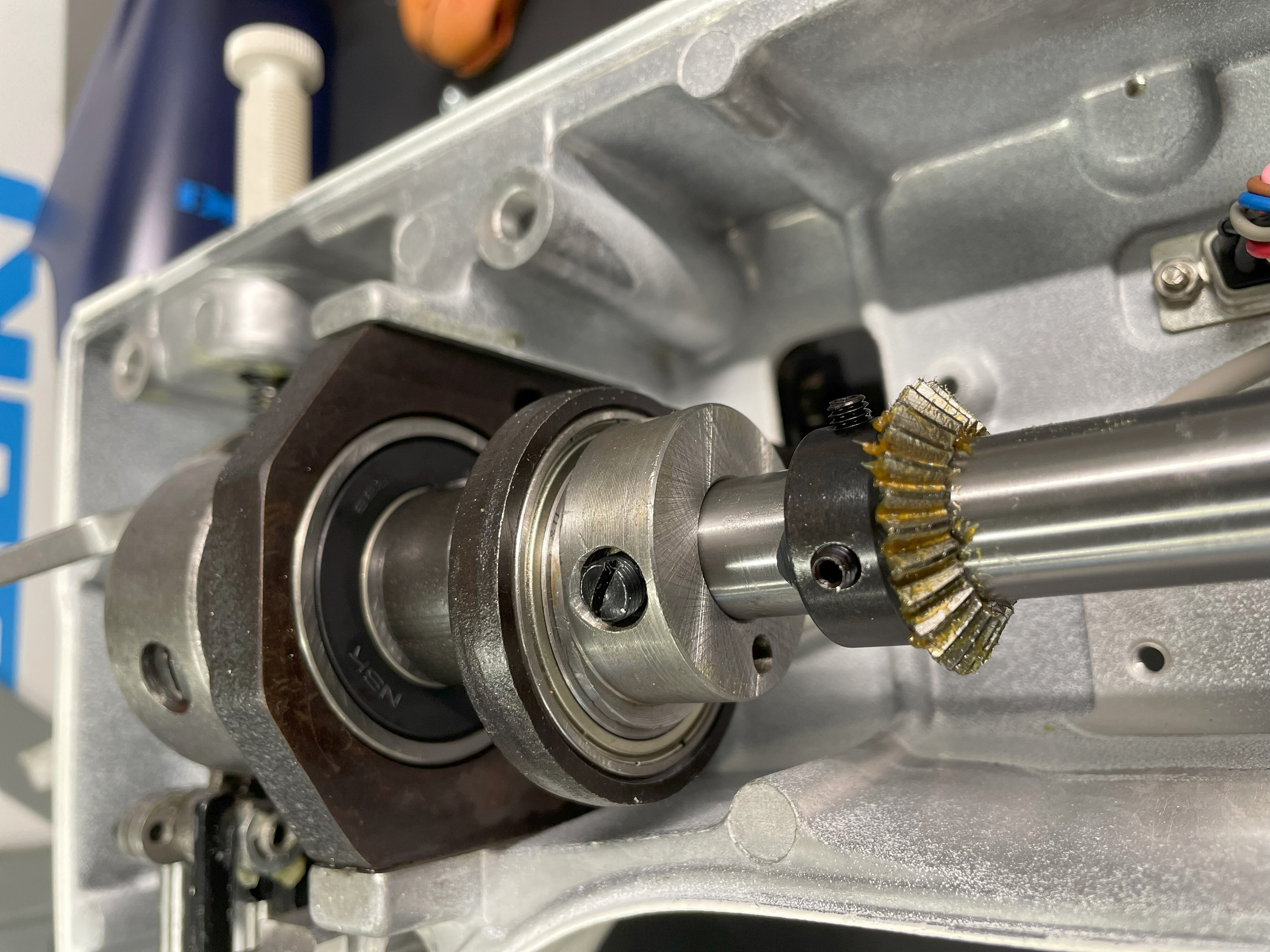

The internal components of the JUKI J350 are here for you to see.
Let's start with some basics regarding the construction.
1) Manufactured at JUKI Industrial plant to JUKI Industrial standards in Japan.(only long arm on the market self produced in such a factory)
2) Cast aluminum housing. Strength and durability by design.

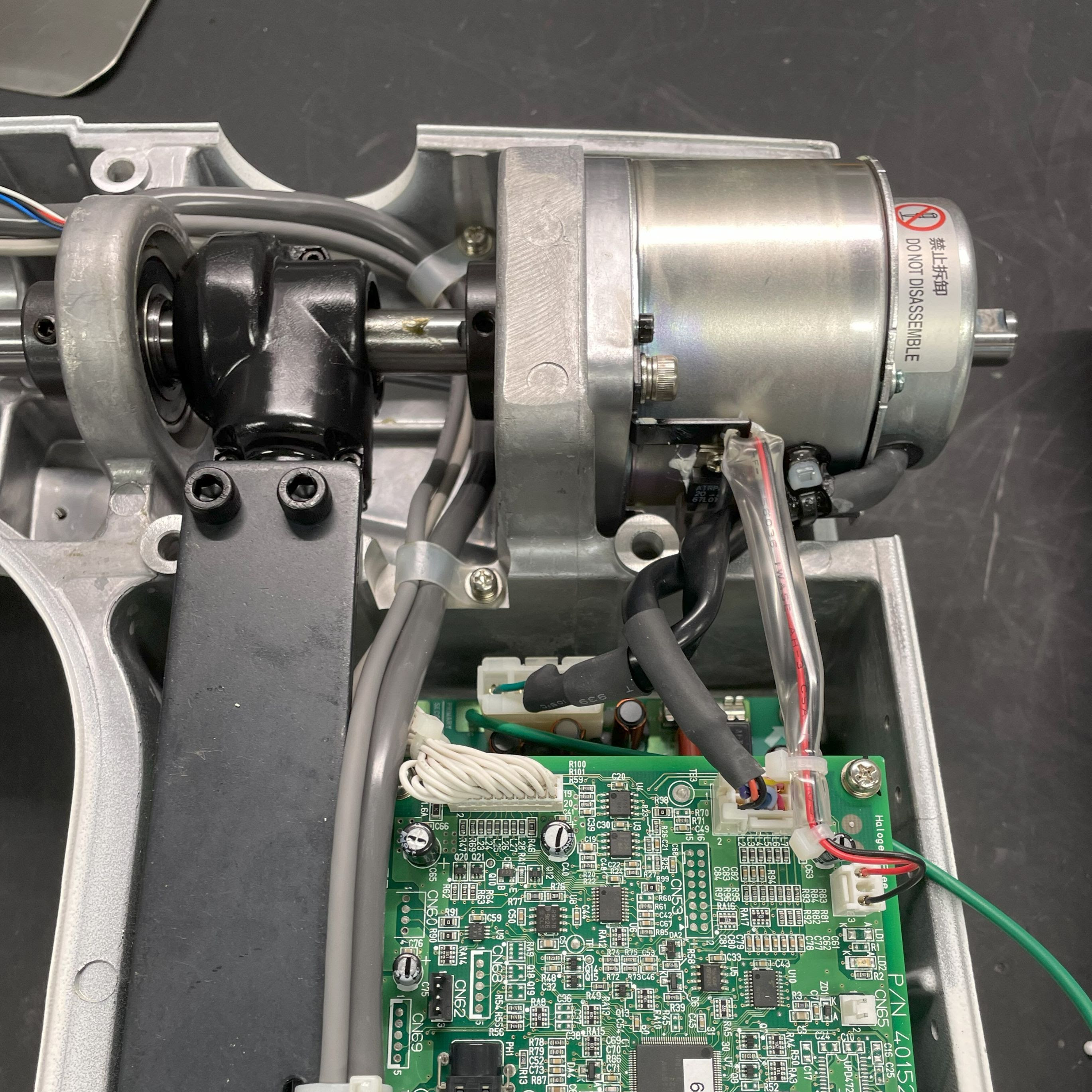

3) Direct Drive - motor mounted to upper shaft. (no belts - avoids wear issues and reduces timing issues)

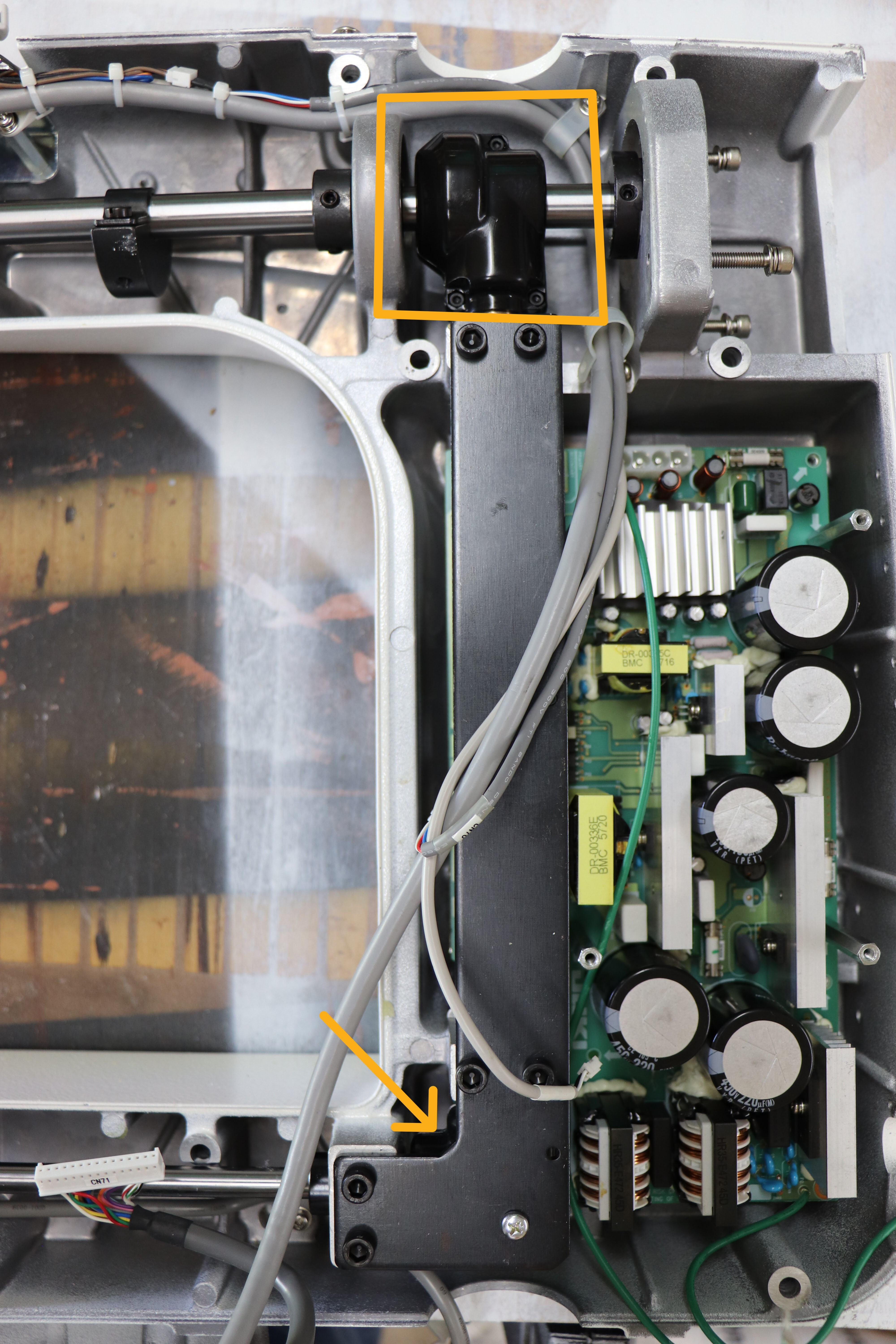

4) Upper and lower shafts connected by vertical shaft with metal gears.(no timing belt - avoids belt related issues and improves control)
5) Gears are protected in closures with lubricant. Reduced exposure of lubricant means longer lasting and less maintenance.

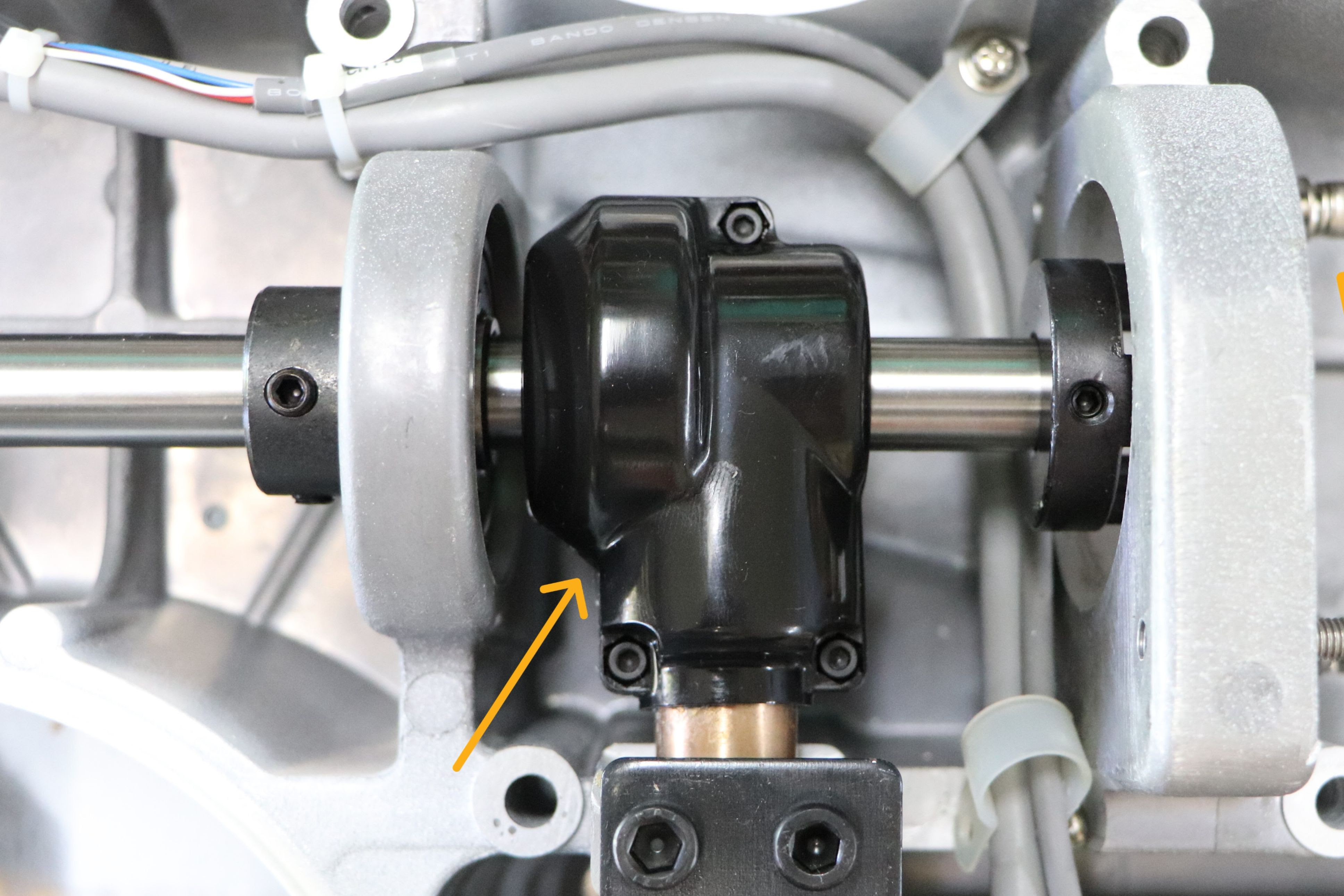

Upper Gear Enclosure

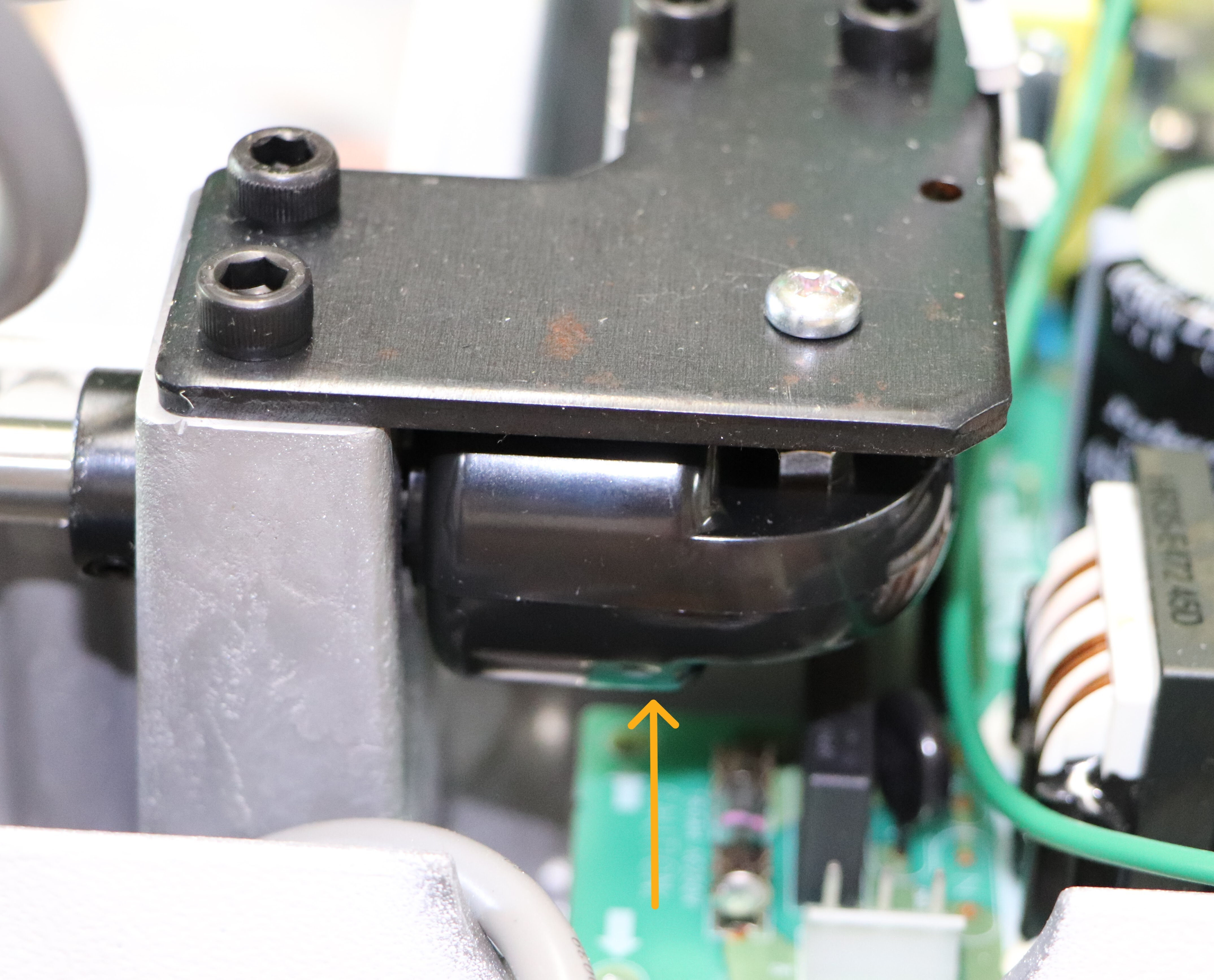

Lower Gear Enclosure

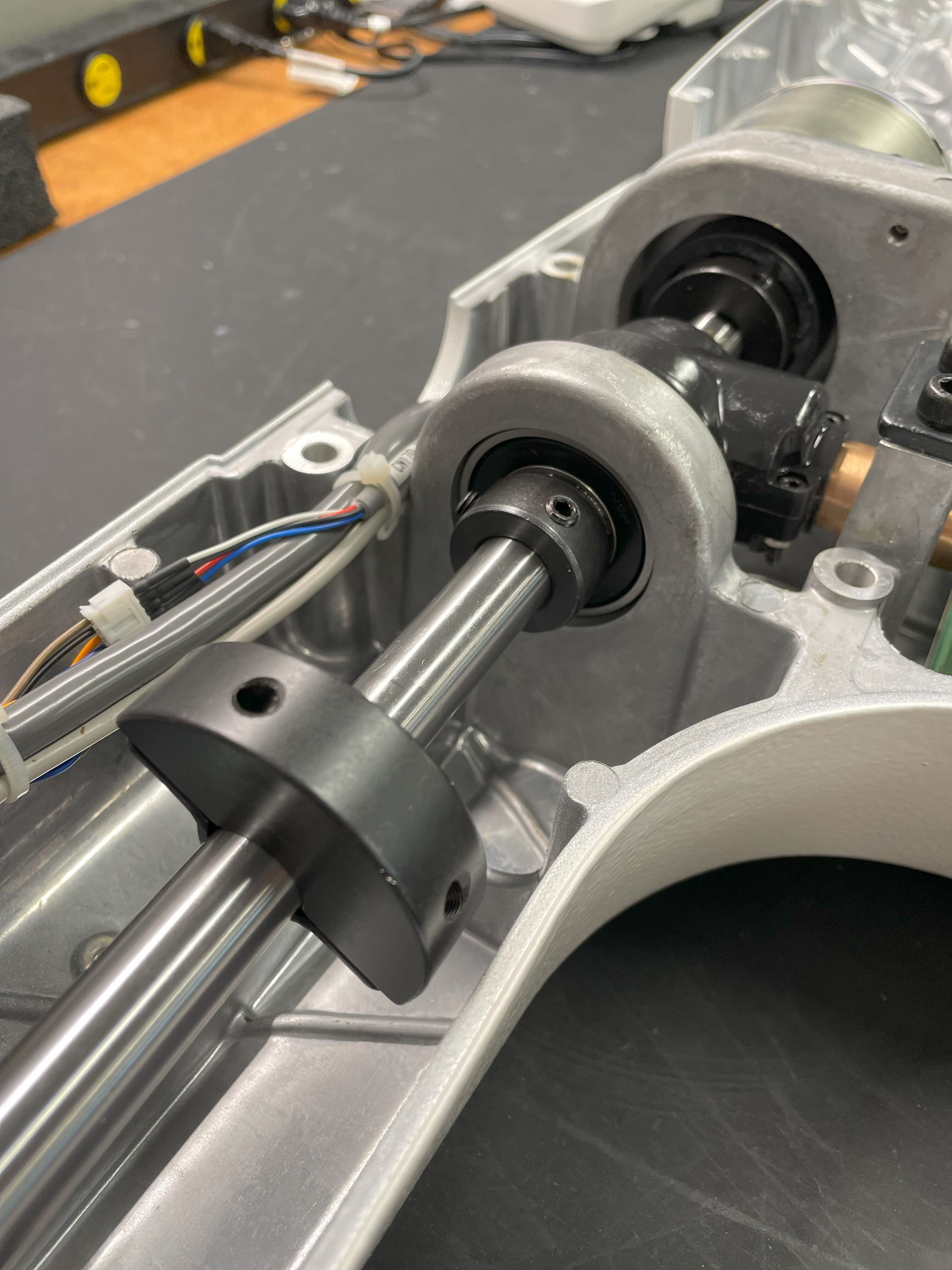

6) All shafts supported in sealed bearings.
7) SmartStitch sensors - sealed against dust and lint intrusion.
Now lets examine features and comparison.
1) Stitch regulation aka SmartStitch -
Electronic
No moving/mechanical parts
Integrated in the machine (not and addon or after market product)
2) Lowest requirement of maintenance compared to other brands - Engineered with a simplistic style and function. No complicated parts to increase service requirements.
3) Thread cutter - manual or automatic - only 18" longarm on the market with thread cutter, cutting both top and bottom threads.

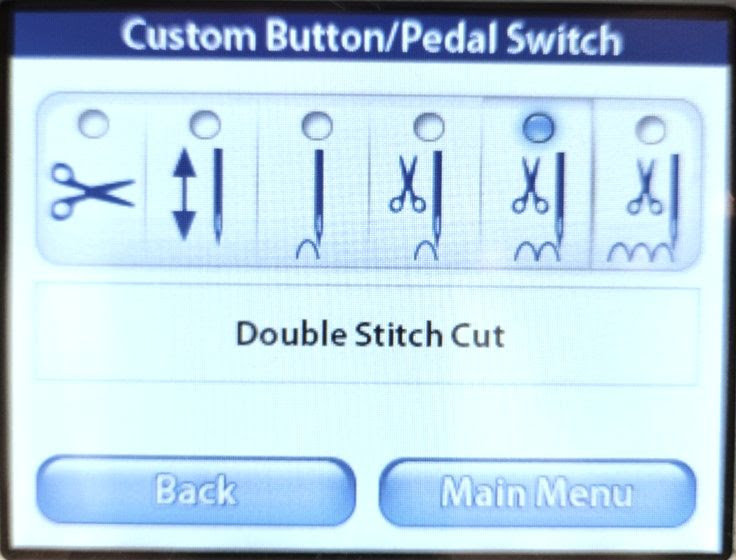

4) Auto thread tie off options
5) Integrated bobbin winder with separate motor accessible from the front of the machine
Recap Excusive features.
Only 18" long arm produced in an industrial sewing machine manufacturing plant with a thread cutter, electronic stitch regulation system and integrated bobbin winder with capabilities of operating in either a table(sitdown) or frame(standing) orientation.
