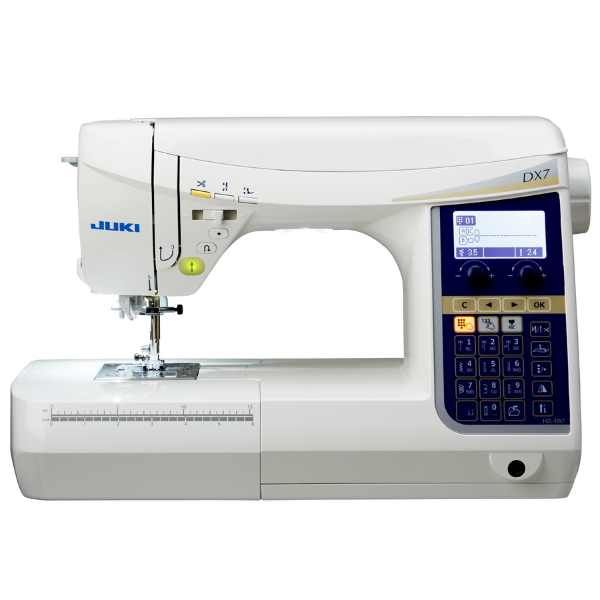

Juki HZL-DX7 Computerized Sewing Machine

The Juki HZL-DX7 Computerized Sewing Machine is the latest and greatest from Juki. One of the main features of the Juki HZL-DX7 Computerized Sewing Machine is quality. Included with the Juki HZL-DX7 Computerized Sewing Machine is the box feed system that stays in contact with your fabric longer for a consistent, reliable seam every time. The Juki HZL-DX7 Computerized Sewing Machine has a built in straight stitch plate, 8 inch throat space, 277 stitches, 4 Alphabets fonts built in and more. This machine is new.

Sewing Machines that meet your needs to achieve perfection.
Enjoy the satisfaction of creating your own design while using high quality finishes.
Get the most out of your sewing experience with the New JUKI HZL-DX series and
turn your creations into masterpieces.

Joining different types of materials
Join a variety of fabrics effortlessly and add trims
with ease.

Accessory cases
Add decorative stitches while using a variety of specialty threads.

Lace-patterned sampler
Sew Decorative patterns in parallel to form new stitch designs.

Emblem pouch
Create a one-point floral stitch surrounded by decorative patterns.

Box Feed - Juki Industrial Sewing Machine Technology
The Juki industrial "BOX Feed" system has been brought to the home sewing machine. Our BOX Feed allows you to create perfect high-quality stitches on all types of fabrics.

Thick denim folded into three layers for a flat fell seam
Evenly sews thick fabrics effortlessly.

The BOX Feed system stays in contact with your fabrics longer for a consistent, reliable seam every time.

Stitching thin fabrics
No fabric shrinkage even sewing on light weight cotton.

Stitching towel fabrics
Evenly feeds hard-to-sew high pile fabrics.

Straight Stitch Slide Plate

Simply slide the front lever to switch to a single needle hole! Sew the lightest fabrics with perfect needle permeation. The single needle plate will not allow fabrics to be pushed into the needle hole. Free motion stitch with precision and perfection. Sew with confidence, when the single needle hole plate is set, only the straight stitch patterns can be selected.

Needle hole for straight stitches

Normal needle hole

Float Function Prevents Uneven Seams

By pressing the float button, you can sew with the presser foot slightly raised. By raising the presser foot to float you can sew fabrics without pushing layers or creating uneven seams.

You can sew with the presser foot slightly floated.

The height of the presser foot can be set in increments of 0.1 mm, allowing delicate adjustment according to the materials.

Using the float function
*The standard presser foot is used in both cases.

Not using the float function
Pressure on layers create uneven seams.

Easily Create and Enjoy Beautiful Buttonholes with Juki's Combination of Industrial Background and Modern Technology
Use the buttonhole sensor system for optimal feed on all types of fabric. You will love the one step buttonhole as it measures and evenly sews on both the right and left sides. Automatically works in optimum order for a perfectly finished buttonhole.

Buttonhole

The buttonhole sewing presser foot contains a clamping plate, so you can confidently feed fabrics by holding them between the clamping plate and the presser foot.

16 types of buttonholes are available for your needs

Cutting width adjustment of the buttonhole
Now it is possible to adjust the cutting width in 3 steps.

Customize Your Machine with even more New Functions!

Easy-to-use Quick Select Buttons
* Start/stop
* Reverse stitch
* Lock stitch
* Thread trimming
* Needle up/down
* Presser foot auto lift

Foot Switch Function

Allowing for greater versatility, Juki now offers assigned foot control options. With the ability to assign function to the heel side of the foot controller you can now lift the presser foot, trim threads, reverse stitch or single stitch by pressing on the heel side of the foot controller. Also allowing for no special settings you have complete control to customize your machine to best fit you.

Presser Foot Pivot Function

When you stop sewing, the needle stops in the down position and presser foot automatically lifts to allow for fabric movement. Sew corners or pivot with ease, when you resume sewing the presser foot automatically lowers for continuous smooth sewing.
*This function can also be switched off.

Setting of the Presser Foot Lifting After Thread Trimming

Because the presser foot is automatically lifted after automatic thread trimming, you can quickly remove fabrics.
*This function can also be switched off.

Adjustable Starting / Reverse Stitch Speed

You can adjust the starting and reverse stitch speed between three steps of fast, normal, and slow.

Check the video reference for convenient assistance!
With the combination of assured automatic operation and fine manual control, you can enjoy ideal natural operation.
ãƒ»Foot Switch Functionã€€
ãƒ»Presser Foot Pivot Function
ãƒ»Hassle-Free Operation

Click here!
https://www.youtube.com/jukihomesewing/videos/watch?v=oF5SRq9Q78k

Create and Design with Precision and Perfection

Lock Stitch

For the lock stitch at the start and the end of sewing, you can choose two kinds of "Reverse stitch" and "Lock stitch". If you press the lock stitch button in the middle of sewing a pattern, the machine stops after sewing one cycle of the pattern.

Low-Speed Inching Sewing

By pressing and holding the needle up/down button, you can sew slowly. Sew corners, stops and starts with precision.

Speedy Straight Sewing
With a maximum straight sewing speed of 1,050 stitches/min, you can sew fast.

Knee-Lifting Lever
Presser foot can be raised and lowered by the knee-lifting lever. Presser foot lift is up to 0.5"(12mm) when the lever is used. When the foot is raised to the maximum height, you can also switch it back from automatic operation (button) to manual operation (lever).

Quick Preparation Makes Sewing a Breeze

Automatic Needle Threader
Simply place the thread in the guide and lower the lever. Easily and quickly thread a needle with one hand.

Bobbin Winder with Independent Motor
To set up the bobbin for winding, simply wind some thread around the bobbin and pass it through the guide. You can wind the bobbin thread everytime, and also use a cutter after winding.

Quick Bobbin Preparation
The bobbin preparation is easy. Just follow the guide and it is not necessary to pull up the bobbin thread.

Elongation Pattern
Change the overall length without changing the sewing density of the pattern.

Stitch Adjustment Dial
Use the easy-to-operate dial to adjust the width and length of the stitch. The dial also lets you make slight adjustments while sewing zigzag stitches.

Free Motion
Flip the switch and drop your feed dogs. Enjoy both straight stitch and specialized zig zag for free motion. Adjust the presser foot height for easy movement. Enjoy the Freedom of Free Motion.

Direct Stitch Pattern Selection
Often-used sewing patterns such as straight lines, overcast stitches, and zigzag patterns can be quickly selected via direct buttons. You can also adjust the sensitivity of the touch panel.

Large Sewing Space
Enjoy extra space and comfort by adding the accessory table while sewing or quilting.

One-Point Patterns
The decorative patterns can be sewn as one point patterns. It is also lovely to create an original tag by combining these patterns with the character stitches.

Character Stitch
The machine includes four alphabetic/numeric fonts. Up to ten often-used patterns such as names and initials can be saved in the memory.

Corner Sewing of Applique
The stitch width of the needle can be set to automatically and gradually change to achieve a stitch that gives a beautiful finish even to the corner of an applique or the start /end of a line of sewing. By adjusting the width and length, you can also control the angles of your design.

Lace Like Patterns
Sewing several patterns in parallel creates lovely lace-like stitches. You can enjoy the combination of patterns that give the image of dedicated lace braid.

Stitch Area Magnifier
Creates 1.4 times magnification to the stitch area.

Thread Stand
With the built in thread stand you can easily use and enjoy larger thread cones.

Invisible Zipper Foot
For installation of concealed zipper.

Button Attaching Presser Foot
For attaching buttons on garments.

Rolled Hemming Presser Foot
For hemming stitch with rolled fabric (3mm).

Quilt Presser Foot
(open type)
For free motion sewing. (Front part is open for better visibility).

Name	HZL-DX7
Control system	Computer
Number of stitch patterns	287
Number of available fonts	4
Buttonhole	Automatic (sensor system) with clamping plate
Direct stitch pattern selection	10 patterns
Start/stop button	Green: Ready to start and/or while sewing Red: Not ready to start Orange: When the lock stitch button is pressed while the sewing machine is engaged in pattern sewing
Maximum stitch speed	1,050 sti/min
Auto thread trimming	X
Automatic needle threader	Automatic needle threader
Thread tension system	Automatic
Automatic lock stitch	Automatic lock stitch and thread trimming
Feed mechanism	BOX feed mechanism
Presser foot pressure adjustment	Stepless adjustment
Drop feed	X
Quick bobbin preparation	X
Bobbin thread winder	Bobbin winder with independent motor
Light	2 LED lights
Straight stitch slide plate	X
Float function	X
Free arm	X
Change in the length/width of stitches	Dial system
Number of needle position (straight stitch/other than straight stitch)	37 / 3
Pattern (right and left) reverse	X
Twin needle sewing	X
Adjustable starting / reverse stitch speed	X
Lock stitch	X
Low-speed inching sewing	X
Presser foot pivot function	X
Memory function	10 patterns
Presser foot horizontality holder button	X
Height of lifting of presser foot (1 step/2 steps)	Button system: 6 mm Lever system: 6 mm / 12 mm
Hard case	Hard case with accessory storage part
Knee lifting lever	X
Wide table	X
Foot controller	Included; with foot switch function
Accessories	Standard presser foot (A)/Zipper presser foot (B)/Overcasting presser foot (C)/Blind stitch presser foot (D)/Buttonhole presser foot (E)/Manual buttonhole presser foot (I)/Walking foot (N)/Patchwork presser foot (P)/Quilt presser foot (Q)/Bobbin (4)/Needle set HA X 1 #11(1):#14(1):#16(1):for knit #11(1)/Twin needle/Quilt guide/Auxiliary spool pin/T-shape screwdriver/Ripper/Cleaning brush/Spool cap (large)/Spool cap (Middle)/Spool cap (Small)/Foot controller/Knee-lifting lever/Power cord/Hard case/Instruction manual/Operation support DVD/ Open toe presser foot (O)/Edge sewing presser foot (R)/Smooth presser foot (T)/Eyelet punch/Wide table
Dimensions	445(W)x291(H)x210(D)mm
Dimensions with hard case	510(W)x305(H)x257(D)mm
Arm size	8.0"x4.4" (203x112mm)
Weight	10.3kg(21.6lbs)
