Industrial 68 Piece Presser Foot Set for Straight Stitch Models



Some of the feet have factory code numbers stamped onto them instead of the Singer Part Numbers. We have indicated the factory code numbers after the next description of each foot IF these code numbers are stamped onto the foot.

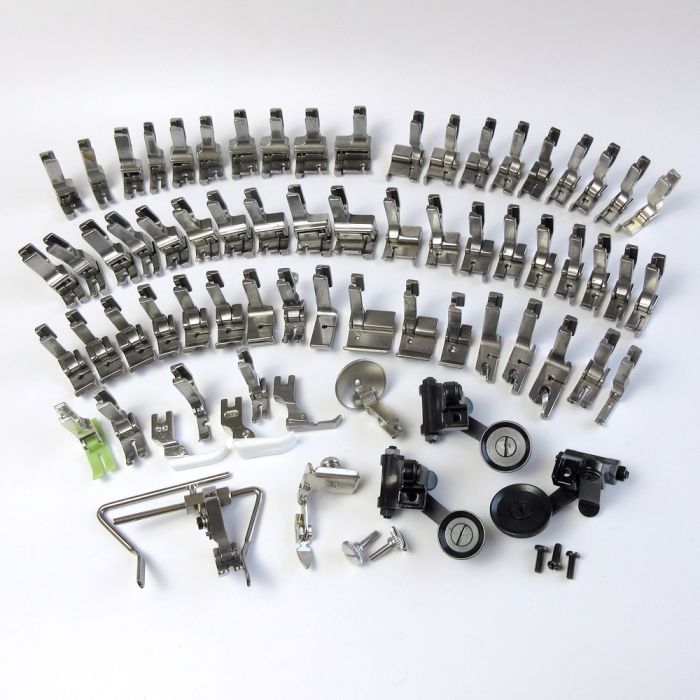

This Industrial 68 Piece Presser Foot Set for Straight Stitch Models consists of:



9 PIECES HINGED RAISING FEET FOR TOPSTITCHING – RIGHT (“EDGE FEET”)

12463H-1/2" Right hinged raising foot for topstitching. Also called "edge feet" This foot is ideal for long, fast and very even topstitching with a solid bottom. (12463RH-1/2”)

12463H-3/8" Right hinged raising foot for topstitching. Also called "edge feet" This foot is ideal for long, fast and very even topstitching with a solid bottom. (P816)

12463H-5/16" Right hinged raising foot for topstitching. Also called "edge feet" This foot is ideal for long, fast and very even topstitching with a solid bottom. (12463HR-5/16”)

12463H-1/4" Right hinged raising foot for topstitching. Also called "edge feet" This foot is ideal for long, fast and very even topstitching with a solid bottom. (12463RH-1/4”)

12463H-3/16" Right hinged raising foot for topstitching. Also called "edge feet" This foot is ideal for long, fast and very even topstitching with a solid bottom. (12463HR-3/16”)

12463H-1/8" Right hinged raising foot for topstitching. Also called "edge feet" This foot is ideal for long, fast and very even topstitching with a solid bottom. (12463RH-1/8”)

12463H-3/32" Right hinged raising foot for topstitching. Also called "edge feet" This foot is ideal for long, fast and very even topstitching with a solid bottom. (12463HR-3/32”)

12463H-1/16" Right hinged raising foot for topstitching. Also called "edge feet" This foot is ideal for long, fast and very even topstitching with a solid bottom. (12463RH-1/16”)

12463H-1/32" Right hinged raising foot for topstitching. Also called "edge feet" This foot is ideal for long, fast and very even topstitching with a solid bottom. (12463RH-1/32”)



9 PIECES HINGED RAISING FEET FOR TOPSTITCHING – LEFT (“EDGE FEET”)

L12463H-1/2" Left hinged raising foot for topstitching. Also called "edge feet" This foot is ideal for long, fast and very even topstitching with a solid bottom. (12463LH-1/2”)

L12463H-3/8" Left hinged raising foot for topstitching. Also called "edge feet" This foot is ideal for long, fast and very even topstitching with a solid bottom. (12463HL-3/8”)

L12463H-5/16" Left hinged raising foot for topstitching. Also called "edge feet" This foot is ideal for long, fast and very even topstitching with a solid bottom. (12463LH-5/16”)

L12463H-1/4" Left hinged raising foot for topstitching. Also called "edge feet" This foot is ideal for long, fast and very even topstitching with a solid bottom. (12463LH-1/4”)

L12463H-3/16" Left hinged raising foot for topstitching. Also called "edge feet" This foot is ideal for long, fast and very even topstitching with a solid bottom. (12463HL-3/16”)

L12463H-1/8" Left hinged raising foot for topstitching. Also called "edge feet" This foot is ideal for long, fast and very even topstitching with a solid bottom. (12463LH-1/8”)

L12463H-3/32" Left hinged raising foot for topstitching. Also called "edge feet" This foot is ideal for long, fast and very even topstitching with a solid bottom. (P8115L)

L12463H-1/16" Left hinged raising foot for topstitching. Also called "edge feet" This foot is ideal for long, fast and very even topstitching with a solid bottom. (12463LH-1/16”)

L12463H-1/32" Left hinged raising foot for topstitching. Also called "edge feet" This foot is ideal for long, fast and very even topstitching with a solid bottom. (12463HL-1/32”) (P810L)



10 PIECES COMPENSATING TOPSTITCH FEET – RIGHT

CR-1/32 Compensating Topstitch Foot (Right) gives you a uniform topstitch 1/32" from the edge of your fabric. This is a Regular Width foot. (CR 1/32”E)(CR410N)

CR-1/32N Compensating Topstitch Foot (Right) gives you a uniform topstitch 1/32" from the edge of your fabric. This is a Narrow Width foot. (CR 1/32”N)(MT210)

CR-1/16 Compensating Topstitch Foot (Right) gives you a uniform topstitch 1/16" from the edge of your fabric. This is a Regular Width foot. (CR 1/16”E)(211)

CR-1/16N Compensating Topstitch Foot (Right) gives you a uniform topstitch 1/32" from the edge of your fabric. This is a Narrow Width foot. (CR 1/16”N)

CR-1/8 Compensating Topstitch Foot (Right) gives you a uniform topstitch 1/8" from the edge of your fabric. This is a Regular Width foot. (CR 1/8”E)(212)

CR-3/16 Compensating Topstitch Foot (Right) gives you a uniform topstitch 3/16" from the edge of your fabric. This is a Regular Width foot. (CR 3/16”E)(213)

CR-1/4 Compensating Topstitch Foot (Right) gives you a uniform topstitch 1/4" from the edge of your fabric. This is a Regular Width foot. (CR 1/4"E)(214)

CR-5/16 Compensating Topstitch Foot (Right) gives you a uniform topstitch 5/16" from the edge of your fabric. This is a Regular Width foot. (CR 5/16”E)

CR-3/8 Compensating Topstitch Foot (Right) gives you a uniform topstitch 3/8" from the edge of your fabric. This is a Regular Width foot. (CR 3/8”E)

CR-1/2 Compensating Topstitch Foot (Right) gives you a uniform topstitch 1/2" from the edge of your fabric. This is a Regular Width foot. (CR 1/2”E)(218R)



10 PIECES COMPENSATING TOPSTITCH FEET – LEFT

CL-1/32 Compensating Topstitch Foot (Left) gives you a uniform topstitch 1/32" from the edge of your fabric. This is a Regular Width foot. (CL 1/32”E)

CL-1/32N Compensating Topstitch Foot (Left) gives you a uniform topstitch 1/32" from the edge of your fabric. This is a Narrow Width foot. (CL 1/32”N)

CL-1/16 Compensating Topstitch Foot (Left) gives you a uniform topstitch 1/16" from the edge of your fabric. This is a Regular Width foot. (CL 1/16”E)

CL-1/16N Compensating Topstitch Foot (Left) gives you a uniform topstitch 1/16" from the edge of your fabric. This is a Narrow Width foot. (CL 1/16”N)

CL-1/8 Compensating Topstitch Foot (Left) gives you a uniform topstitch 1/8" from the edge of your fabric. This is a Regular Width foot. (CL 1/8”E)

CL-3/16 Compensating Topstitch Foot (Left) gives you a uniform topstitch 3/16" from the edge of your fabric. This is a Regular Width foot. (CL 3/16”E)(223)

CL-1/4 Compensating Topstitch Foot (Left) gives you a uniform topstitch 1/4" from the edge of your fabric. This is a Regular Width foot. (CL 1/4”E)

CL-5/16 Compensating Topstitch Foot (Left) gives you a uniform topstitch 5/16" from the edge of your fabric. This is a Regular Width foot. (CL 5/16”E)(225L)

CL-3/8 Compensating Topstitch Foot (Left) gives you a uniform topstitch 3/8" from the edge of your fabric. This is a Regular Width foot. (CL 3/8”E)(226E)

CL-1/2 Compensating Topstitch Foot (Left) gives you a uniform topstitch 1/2" from the edge of your fabric. This is a Regular Width foot. (CL 1/2”E)(228L)



3 PIECES TEFLON FEET

24983T Teflon Foot. This is the same as the #24983 Standard Double Toe Presser Foot BUT it has a Solid Teflon Bottom, making it very slippery. It is very useful with sticky fabrics or materials. (T35)

MT3 Teflon Foot. This foot is similar to the 40322H Standard Zipper Foot BUT it has a Solid Teflon Bottom, making it very slippery. (40322SHT)(T363)

MT9 Teflon Foot. This foot is similar to the 24983T, except that it has a flat, smooth bottom sole with a single needle hole. It is also very useful with sticky fabrics or materials. (T35 Single Needle Hole)



3 PIECES SHIRRING FEET

P5R Regular tape edge shirring foot. This foot has a 7/16” slot to feed tape OVER the fabric as it is shirred. (P5)

S952 Adjustable combination stitching or shirring foot. With the rear screw turned completely out, the foot sews like a regular sewing or seaming foot. As you turn the screw inward, the foot begins to shirr. Continue to turn the screw clockwise for more shirring. ALL shirring feet will shirr EVEN MORE if you put your finger directly behind the presser foot and IMPEDE or PREVENT the feeding of the fabric.

120828 Standard shirring foot. This is the most popular shirring foot for light to medium fabrics. Put your finger behind the foot to prevent easy feeding for maximum shirring. (P50)



3 PIECES STANDARD HEMMING FEET

S542-1 Standard hemming foot - 1”. (P3625)

S542-3/4 Standard hemming foot - 3/4”. (P3619)

S542-1/2 Standard hemming foot – 1/2”. (P3613)



3 PIECES SCROLL HEMMER FEET

160344 Scroll hemmer foot creates a beautiful double fold 1/16" on light to medium fabrics. (1  1.6mm 1/16”)

120803 Scroll hemmer foot creates a beautiful double fold 1/8" on light to medium fabrics.  (2-1/2  3.2 mm 1/8”)

120805 Scroll hemmer foot creates a beautiful double fold 3/16" on light to medium fabrics. (4  4.8mm 3/16”)



3 PIECES ROLLER FEET

12264 Small Roller Foot. This foot is ideal for sewing light leathers, laminated fabrics,

foam rubber, nylon, and plastics. It allows the operator to make very sharp turns.

12265 Medium Roller Foot. This foot is ideal for sewing light leathers, laminated fabrics, foam rubber, nylon, and plastics. It allows the operator to make very sharp turns.

12267 Large Roller Foot. This foot is ideal for sewing light leathers, laminated fabrics, foam rubber, nylon, and plastics.



9 PIECES PIPING (CORDING) FEET

4351H Adjustable Left or Right cording foot.

P69HL-1/8 Hinged piping foot (Left). This foot will attach 1/8" diameter piping to your fabric. (P69LH-1/8”)

P69HL-3/16 Hinged piping foot (Left). This foot will attach 3/16" diameter piping to your fabric. (P69LH-3/16”)

P69HL-1/4 Hinged piping foot (Left). This foot will attach 1/4" diameter piping to your fabric. (P69LH-1/4”)

P69HR-1/8 Hinged piping foot (Right). This foot will attach 1/8" diameter piping to your fabric. (P69RH-1/8”)

P69HR-3/16 Hinged piping foot (Right). This foot will attach 3/16" diameter piping to your fabric. (R36069H-3/16”)

P69HR-1/4 Hinged piping foot (Right). This foot will attach 1/4" diameter piping to your fabric. (P69RH-1/4”)

P36LN Narrow hinged cording foot (Left). (31358HN)

P36N Narrow hinged cording foot (Right). (12435HN)



2 PIECES QUILTING FEET

S521 Hinged Quilting foot with Left & Right guides that are spring loaded to quickly pop up away from the fabric.(P723)

QS1 “Freestyle” Quilting foot.



4 PIECES MISCELLANEOUS FEET

P363 Narrow split hinged zipper foot. (40322SH)

P361 Narrow hinged presser foot (Right). (121950H)

P-58N Narrow hinged presser foot. (142058N)

P35 Regular hinged presser foot.( 24983)



2 Universal foot mounting screws



This IMPOSSIBLE to find set will also fit:



For ARTISAN: 196R 5550N 8500N ZJ-100

For BROTHER: B705 B707 B715 B716 B735 B737 B738 B745 B755 B757 B758 B767 B781 PQ1300 PQ1500 PQ1500SL, DZ1500

For COLUMBIA: N430

For CONSEW: 30 98 99 102 103 105 210 217 218 219 220 290 310 2230 7360R-1

For CUTLINE: C220

For CUTSEW: 777 787

For FEIYUE: FY8500 FY8700

For GEMSY: 8700

For Janome 1600P Series, HD9

For JUKI: DDL-127 DDL-227 DDL-500 DDL-501 DDL-552 DDL-553 DDL-555 DDL-5550 DDL-5600 DDL-8300 DDL-8500 DDL-8700 DDL-9000 TL98E TL98Q, TL2000Qi, TL2010Q, TL2020PE, TL18QVP

For MITSUBISHI: DB-120 DB-121 DB-122 DB-126 DB-130 DB-170 DB-189 DB-199 LS2-130 LS2-150 LS2-180 LS2-190 LS2-1130

For NECCHI: SUPERNOVA JULIA

For RELIABLE: MSK-8800 MSK-8550M MSK-8870M

For REX: RX8500

For RICCAR: RD-102

For SINGER: 20U 31-15 44 95 96 120U 121C 121D 188K 191D 195K 196K 241 251 281 366K 400W 402W 451K 491D 591D 600W 660A 691D 770D 771D 1191D 1591D 2191 2491D

For SUNSEW: GC1130 GC5550 GC6180 GC8500 GC-B735 GC-C111

For SUNSTAR: KM-123A KM-123B KM-137A KM-137B KM-146BL KM-250

For TACSEW: 5550 T8700

For TAIKO: TK-505 TK-510

For TOYOTA: AD156 AD157 AD338 D146 D147 D347 D348 D1422-42 D2432

For TYPICAL: GC6-1-D3E2 GC6150B GC6150H GC6150M GC6160D3 GC6195M

For UNICORN: LS2-H520 LS2-H530 LS2-H5100 LS2-H5200 LS2-H5300

For YAMATA: FY8500 FY8700

For ZOJE: ZJ15-1 ZJ80-1 ZJ90-1 ZJ999-1 ZJ999-5 ZJ5580 ZJ5580-D3 ZJ8500-D3 ZJ8500N



This High Quality Set will also fit many Home Sewing Machines that use HIGH SHANK Presser Feet. Look at the feet in the photo to see if your feet are shaped the same way. These HIGH SHANK Presser Feet have a Total Height of 1-1/4". But LOW SHANK Presser Feet have a total Height of about 7/8". These Feet WILL NOT fit LOW SHANK Home Sewing Machines.
