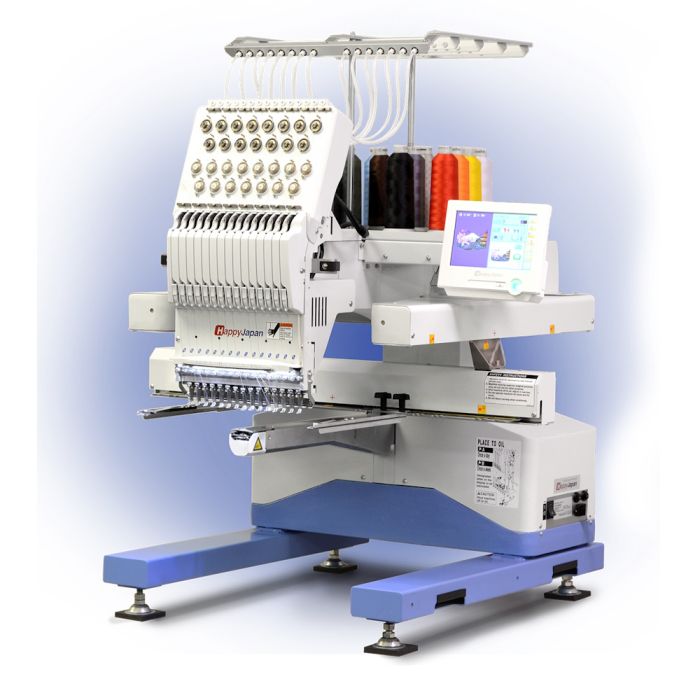

Happy Japan HCU2 1501 15 Needle Commercial Embroidery Machine

The HCU2-1501 is the our flagship, heavy-duty commercial single-head with the ultimate in features such as digital tension, auto fabric detection, huge 23″ x 16″ sew field, and fast 1500spm operation.

The 15-needle HCU-Series is the company’s flagship, heavy-duty commercial single-head embroidery machine. This is immediately evident in the machine’s key specifications: a very large 23.5″ x 15.7″ sewing field and a max sewing speed of 1500spm. The HCU2 delivers impressive capability for the commercial embroiderer.  In its latest form, HappyJapan introduces a revolutionary, keeper-less, ultra-low-profile sewing arm that greatly improves access to normally difficult areas like pockets, sleeves, and cuffs.  As an industry leader, the HCU2 possesses many design innovations that make it a real standout in HappyJapan’s single-head lineup.

Standard Features:

• Color LCD touchscreen panel
• Customizable front screen apps
• USB/LAN ports for direct PC connection
• Built-in help, auto-error correction
• Combine designs & text directly onscreen
• Built-in lettering & stock designs
• Onboard editing: rotate, scalle, mirror, satin pull compensation, stitch cleanup, lockstitching
• Import any compatible 3rd-party hoop onscreen for accurate positioning
• Load, set up additional designs while machine is running
• Commercial Servo Motor Built In
• Digital Tension Adjustment
• Digital Presser Foot Set
• 1,500 Stitches Per Minute Max Embroidery Speed
• Automatic Material Thickness Detection
• Can display information in both inches and metrics
• The cap system can embroidery approximately 1/4" from the brim of the cap.

Included with the machine:

• Complete hoop kit, 4 sizes, 2 of each:
  • 2 x large rectangular 600mm (23.6in) x 400mm (15.7in) hoops
  • 2 x 320mm (12.6in) x 320mm (12.6in) square hoops
  • 2 x 150mm (5.9in) round hoops
  • 2 x 120mm (4.7in) round hoops
• Complete wide-field cap sewing kit, including:
  • 2 x wide cap frames
  • 1 x cap stretcher (hooping station)
  • 1 x cap driver
• Operator’s toolkit
• HappyLINK & HappyLAN connection software

• Get ear to ear embroidery in just 1 hooping with the Happy Professional Cap System



Warranty

10-Year Limited Warranty ( Commercial ) covers Parts & Labor as described below (travel cost not included) for HCR/HCD/HCU/HCA/HCG/HCM products only: Two Years warranty coverage on all Mechanical Parts excluding consumption parts and damage caused by neglect, lack of machine care, maintenance and or improper use. Three Years warranty coverage on all Electronic Parts excluding consumption parts and damage caused by neglect, lack of machine care, maintenance and or improper use. Ten Years warranty coverage on all Drive Belts and Motors excluding consumption parts and damage caused by neglect, lack of machine care, maintenance and or improper use Consumable Items not covered: Needles, trimmers, sewing hooks, thread catch hooks, bobbin cases, bobbins, presser feet, hoops, screws, nuts, bolts, bulbs, cap frames, fuses and filters
