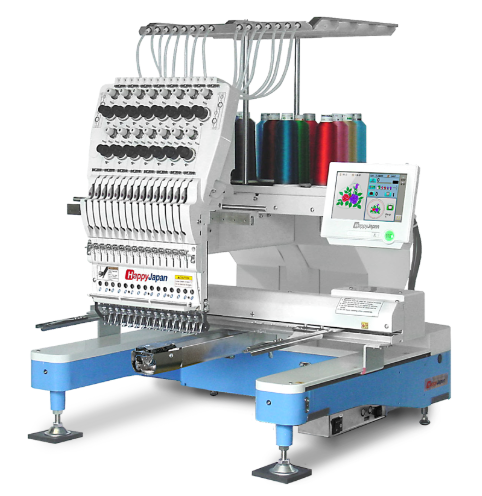

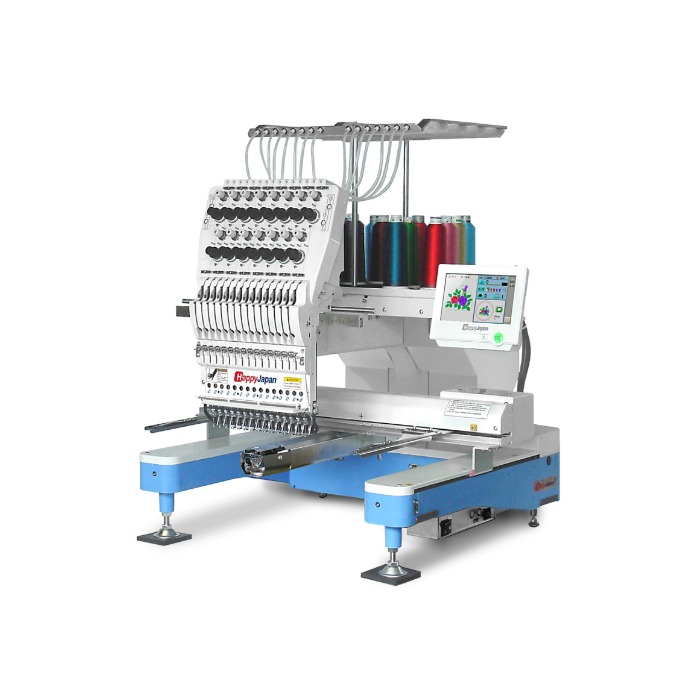

Happy Japan HCD3 1501 Servo 15 Needle Commercial Embroidery Machine
In stock
Only 3 left
SKU
87107
The HCD3-1501 is the ultimate version of the HCD-series, providing unmatched performance and efficiency with its advanced servo drive.
The 15-needle HCD3 is nearly identical to the HCD3e, which is our best-selling, full-sized, heavy-duty commercial single-head embroidery machine. The HCD3 shares the same general specifications as the HCD3e, including sewing field size and maximum operating speeds (1200spm), along with the heavy-duty drive system. HCD3 takes it all to the next level with a more advanced servo drive system, which increases efficiency and smoothness at higher operating speeds. The servo drive also improves the machine’s ability to produce quality stitching on more challenging types of materials.
The repositionable arms allows the machine to accommodate a wide variety of hoops. The very large 17.25” x 16.5” hoops are included with the machine.
With some of the simplest, lightest maintenance requirements in the industry, HCD3e minimizes downtime and maximizes production time. Coupled with auto error correction and onboard help, the HCD3e easily becomes the most popular machine in the embroidery shop.
Acknowledged to be one of the easiest to learn and operate, HappyJapan’s touchscreen interface requires very few button presses to accomplish most tasks. Common, everyday tasks, like loading and setting up designs, are accessed directly on the front screen without any menu-diving. Built-in help and auto-error correction help minimize downtime and maximize productivity.
The servo drive upgrade takes the already-successful design of the HCD3-series to the next level. With its servo motors being inherently more efficient and smoother at higher operating speeds, the HCD3-1501 is a machine transformed. More comfortable at the higher end of its speed range, the HCD3 not only offers a small, but significant productivity advantage over a similar stepper-driven machine, but it also accomplishes this while consuming less power and generating less heat. This makes the HCD3-1501 shine in the most challenging operating environments. The servo motors’ greater torque at high speeds also provides a noticeable advantage on more challenging garments, such as popular trucker-style caps, 3d puff embroidery, and thicker items.
Specifications & Features
- Sewing Field: 20.5" wide x 15.74" high on flat goods, 14.1" wide x 3.1" high on finished ballcaps
- Operating Speed: 1200 stitches/min on flats, 1000 stitches/min on finished ballcaps
- Memory: 100 million stitches/3000 designs, 100 built-in stock designs
- Onboard Lettering: 12 fonts ranging from 2" tall to 1/4" tall
- Dimensions: 33.3"w x 32.2"d x 29.3"h
- Power requirements: Single Phase 100-115V, 170W, 60Hz
- Weight: 110Kg / 242 lbs
Included with the Machine
- Hoops: 2ea. of the of the following: 4.7" round, 5.9" round, 12.5" square, 17.25" x 16.5" rectangular, wide-field cap hoop
- Cap sewing kit includes 2x wide-field cap hoops, cap stretcher (hooping station), cap driver
- Software: HappyLink, HappyLAN connection software
- Operator's toolkit
- Manuals: Operator's and Parts manuals (in PDF form)
Get ear to ear embroidery in just 1 hooping with the Happy Professional Cap System
Warranty
10-Year Limited Warranty ( Commercial ) covers Parts & Labor as described below (travel cost not included) for HCR/HCD/HCU/HCA/HCG/HCM products only: Two Years warranty coverage on all Mechanical Parts excluding consumption parts and damage caused by neglect, lack of machine care, maintenance and or improper use. Three Years warranty coverage on all Electronic Parts excluding consumption parts and damage caused by neglect, lack of machine care, maintenance and or improper use. Ten Years warranty coverage on all Drive Belts and Motors excluding consumption parts and damage caused by neglect, lack of machine care, maintenance and or improper use Consumable Items not covered: Needles, trimmers, sewing hooks, thread catch hooks, bobbin cases, bobbins, presser feet, hoops, screws, nuts, bolts, bulbs, cap frames, fuses and filters
