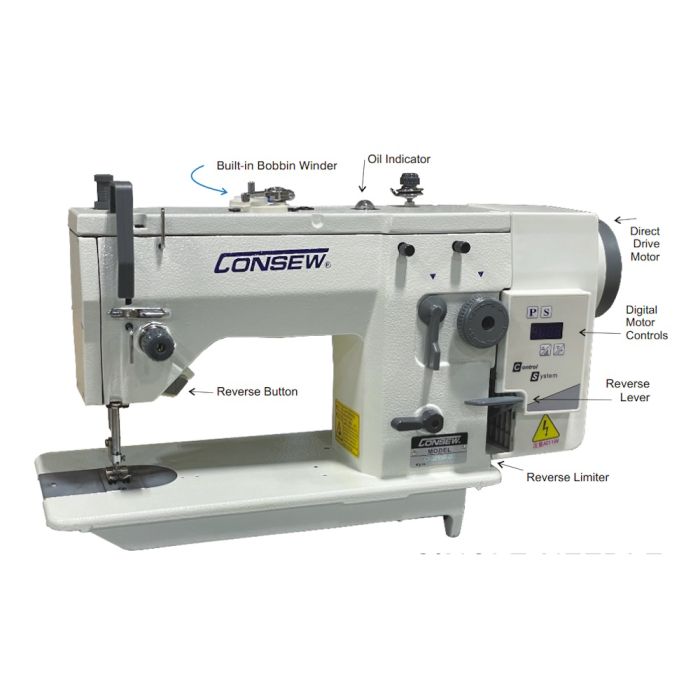

Consew CN2093DD Single Needle Zig-Zag Lockstitch Machine with Assembled Table and Servo Motor
The Consew CN20593DD Single Needle Zig-Zag Lockstitch Machine with Assembled Table and Servo Motor is a great machine for multiple sewing applications. If your household machine is just not strong enought for the sewing jobs you are now sewing the Consew CN2093DD Single Needle Zig-Zag Lockstitch Machine with Assembled Table and Servo Motor is a great choice. The Consew CN2093DD Single Needle Zig-Zag Lockstitch Machine sews straight stitch and zigzag only on light to heavyweight fabrics.
For sewing light to medium heavy weight fabrics including clothing, shoes and
caps, leather articles, bags and more
• For attaching lace, elastic band, bottom hemming, edge stitching, butted
seaming, applique and similar operations
• Federal stitch type 304 (and a type 301 stitch when set to straight stitch)
The Consew SC2093DD Includes the Consew Stand with adjustable speed Servo Motor.
Please allow 1 week before it ships.
Note: Due to the size of this item freightline shipping is required.
APPLICATIONS of the Consew CN2093DD Single Needle Zig-Zag Lockstitch Machine
- For sewing light to medium heavy weight fabrics including clothing, shoes and caps, leather articles, bags and more
- For attaching lace, elastic band, bottom hemming, edge stitching, butted seaming, applique and similar operations
- Federal stitch type 304
Where there is a requirement for higher seam elongation with either lockstitch or chainstitch, a zig zag formation may by used. For example, in corsetry. To produce either zig zag formation the needle bar moves laterally as the material is fed.
FEATURES of the Consew CN2053R-1 Single Needle Zig-Zag Lockstitch Machine
-
FEATURES
- Direct Drive Built-In Servo Motor
- Variable Speed Control
- Digital Controls
- Automatic Lubrication
- Horizontal Axis Rotary Hook - Front Load
- Reverse Feed
- Adjustable Reverse Stitch Length
- Combination Zig-zag And Straight Stitcher
- Needle Position Adjustment (right•center•left)
- Needle Position (stop-up /stop-down)
- Metal gears (hardened steel)
Specs of the Consew CN2093DD Single Needle Zig-Zag Lockstitch Machine
-
SPECIFICATIONS
Number of Needles 1 (Single) Feeding Mechanism Drop Feed Workspace Standard Workspace Standard or Full Function Standard Functions Stitch Type 304/301 Speed, Max (S.P.M.) 1800 Motor Type Direct Drive Internal Clearance Under Presser Foot Foot 25/64” (10 mm) , Hand 15/64” (6 mm) Stitch Length 5 s.p.i. (5mm) Work Space 8 5/16" (211mm) Needle 135 x 5 Bed Size 7" 15 11/16" (178mm x 398.5mm) Needle Bar Stroke 1 6/25" (31.5mm) Stitch Width, Max 11/32" (9mm)
The Consew CN2093DD Single Needle Zig-Zag Lockstitch Machine will come with assembled table and the new and improved servo motor.
Major Features of the Servo Motor
- They save up to 70% electricity than other commercail motors
- Ligher in weight than other commercial motors
- Adjustable speed control
- 110v so no special wiring needed versus other 220v motors. Most households in the US are wired for standard 110 voltage.
We highly recommend having us assemble and test the machine for you.
We repack them for your choice of freight shipping. Please note we now offer Fedex White Glove Sevice. White glove will bring the item in your house and then take away all packing and pallet for you. This includes the frieght to your door.
Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.
| SKU | 66383 |
|---|---|
| Part Number | CN2093DD |
| Condition | New |
