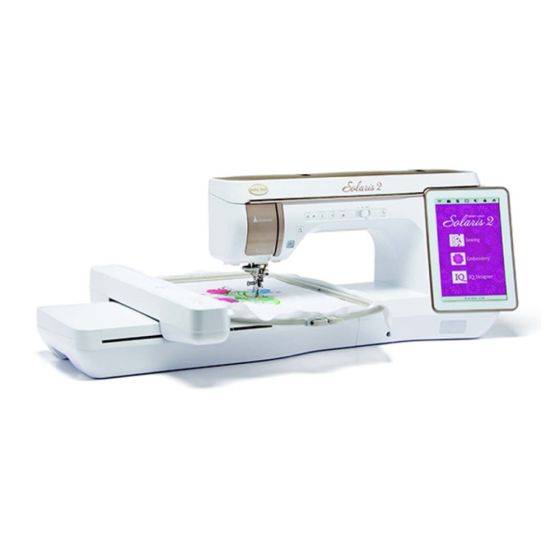

Baby Lock Solaris 2 Sewing and Embroidery Machine

MAJOR FEATURES

• WXGA IPS TFT LCD Color Touch Screen Technology
• Shows 16,777,216 colors
• Measures 10.1" diagonally (800 x 1280 pixels)
• Displays Clock and Date
• 3x faster processing speed
• Mpeg-4 movie/video play function
• Video display size 6.2" diagonally
• Exclusive 1GB Memory Storage for video
• IQ VisionaryTM Projector
• Projects your embroidery design in a 3" x 5" (7.6 cm x 12.7 cm) area
• Advance and select stitches from projection using the Dual Function Stylus
• Select background color from projection using Dual Function Stylus
• Set width, length and left/right shift
• Projection of Guide Beam, Grid and Needle Beam for precision alignment of stitches
• Main and Sub line Options
• 3 Color Options (Red, White, Green)
• Line length and single point options
• Horizontal and vertical position options
• 45, 60 and 90 Degree angles
• Grid adjustable up to from 5mm t30mm (3/16" x 1-3/16")
• 4 adjustment levels on projection light
• NeedleCam™ Digital Camera for embroidery and sewing positioning with faster scanning.
• Precise Touch Positioning™ using NeedleCam
• Camera detecting buttonhole foot with stabilization plate
• Creates up to 45mm buttonhole
• IQ Designer with paper holding frame for image scanning
• LCD screen size can be enlarged t1280 x 800 pixels
• Will automatically create an embroidery pattern from a JPEG image
• Drawing area is 3-3/4" x 5-11/16" (96mm x 145mm)
• 90 Preloaded open, closed and region shapes
• Able to select different line colors and fill colors
• 18 Different stitch patterns: running, bean, satin, noutline, chainstitch, blanket, blindhem, candlewicking and 10 decorative stitch outlines
• 45 Different fill patterns: regular fill, no fill, stipple, and 42 decorative pattern fills
• Duplicate and paste editing preloaded shapes
• Adjust line, fill and stippling width, length and density properties
• Light fill or regular fill for decorative fill patterns
• Undersewing options
• Undo and Redo options
• Outline stamp shape creation for Trapunto techniques
• 2 scanning modes
• Fine - For illustrations
• Standard - For line drawings
• Enhanced Stadium Lighting for 13" area of brighter true color LED
• lighting on the needle and work area with 5 settings
• 2 (Type A) USB 2.0 drives to connect a mouse, Flash drives, and CD-ROM drives
• SD Card Slot
• Wireless Wi-LAN Function data transfer technology (Requires
• Palette 11 version software and/or free Intuition Positioning App)
• NeverMiss™ Automatic Advanced Threading System
• Digital Dual-Feed System ensures utmost fabric control when feeding layers or difficult fabric types
• Advanced Pivoting Feature and Automatic Fabric Sensor System
• Automatic sensors
• Thread tension control makes tension adjustments for accurate stitches
• Upper and lower thread sensors on/off
• Upper and lower thread sensors to alert when threads run out
• On-screen hoop sensor to recommend size of hoop
• Embroidery and sewing speed up t1,050 spm
• Precise tracking system on embroidery carriage
• Resume mode for Embroidery and IQ Designer
• Programmable shutoff capabilities
• Eco power mode

INSTRUCTION AND HELP RESOURCES

• Built-in Instructions and Reference Manual
• Built-in Operational Guide with up to 40 help topics and 42 built-in videos
• Built-in Sewing Application Guide
• Built-in Help Messages
• Embroidery Stitch Count System – SCS
• Capability to save settings screen images
• Your Solaris will stay current with future upgrades/updates via USB or WLAN connection
• Language conversion capabilities (12 languages)
• Machine Hoop required space clearance 32" from front to back
• Warranty (25 years limited, 10 years parts, 5 years computer circuit, 5 years electrical, 1 year labor)

EMBROIDERY CAPABILITIES

• 865 Embroidery designs built-in including
• 355 Baby Lock exclusives
• 35 Sewlebrity designs
• 15 Buttonhole embroidery designs in 5 sizes (75 total)
• 15 Buttonhole embroidery frame designs
• 244 Large decorative stitch designs
• 30 Quilting Border Patterns in 3 categories
• 40 Couching patterns
• 140 Frame combinations
• 32 font styles including
• Extra-large striped alphabet and characters (100 total)
• Extra-large block alphabet and characters (100 total)
• Exclusive script alphabet and characters (70 total)
• Large floral block alphabet (64 total)
• Large vine alphabet (60 total)
• Greek alphabet (24 total)
• Embroiders up to 10 5/8" x 16" (272mm x 408mm) embroidery field
• 10 5/8" x 16" hoop has new locking mechanism and silicone side grips for slip-free fabric support
• Memory capacity approximately 10MB
• Reads embroidery designs with a stitch capacity of up to 750,000 stitches per design and 127 color changes
• Color Visualizer with favorite color selections
• WXGA IPS TFT Color LCD Touch Screen shows
• Design placement using drag/drop and slide/scroll/pinch capacitive capabilities
• Enhanced Realistic Preview
• Screen brightness with 6 settings
• Design previews can be enlarged 400%
• Needle positioning grid and hoop selections
• Needle position image can be enlarged 200%
• Estimated embroidery time display and stitch count
• Embroidery progress bar
• Stitch simulator
• Needle advancement (1, 10, 100, or 1000 stitch increments)
• Measurements displayed in inches or metrics
• Color separation
• Thread color indicator
• On-screen hoop size indicator
• Low bobbin thread indicator with option to sew reinforcing stitches in embroidery mode
• 300 color names
• Screen saver customization
• Thumbnail images in 3 viewing sizes, defaults at 150%
• 9-Point trial check points
• Starting point key for instant alignment of characters or patterns Alternate bobbin case for pre-wound bobbins
• Customize embroidery pattern and thumbnail background colors (66 options)
• On-screen grid
• Cuts jump stitches (with on/off capability)
• Embroidery frame clearance setting for easy bobbin changes
• Embroider without removing the foot control
• Compatible with optional W+ Needle Beam Foot and mouse

EMBROIDERY EDITING CAPABILITIES

• Combine embroidery designs on screen
• Character/text array function
• Character spacing
• Multi-line text with justification options
• Character insert and group edit capabilities
• Change fonts on letters or words after the design is set
• 0.1°, 1°, 10°, and 90° pattern rotation
• Enhanced design enlargement (up to 200%) and reduction (down to 60%) capabilities
• Design duplication
• Multiple design selection capabilities
• Automatic appliqué
• Automatic basting
• Add automatic stippling, echo stitching, and decorative fill patterns around embroidery designs
• Set the distance, spacing and frame size
• Mirror imaging
• Change color selections within designs
• Enhanced color sorting to optimize sewing order
• Monochrome option for embroidery designs
• Programmable custom thread color selection
• 14 Major thread brands color palettes built-in

ADVANCED SEWING CAPABILITIES

• 864 Built-in stitches including
• 154 Utility including 15 one-step buttonhole styles and 1 fourstep custom buttonhole
• 527 Decorative
• 79 Decorative satin
• 20 Satin
• 21 Cross
• 63 Combinable Utility stitches
• 3 Hand-look Quilting
• 4 Built-in alphabets
• 30 Quilting stitches offer 57 needle position options
• Stitch length 0.0mm - 5.0mm
• 2 Basting stitch options: Regular 5mm and free-motion
• Maximum Utility stitch width 7mm
• Utility stitch editing capabilities
• 5 Memory settings for each Utility stitch
• Decorative stitch editing capabilities
• Edit and combine Character Decorative stitches
• Character/Decorative stitch memory equaling 1MB
• Satin stitch elongation
• Mirror-image
• Back to the beginning key
• Single and repeat mode
• Length width proportional linking key
• Sew Utility and Decorative stitches while embroidery arm is attached
• Specify end-point for stitch line with capability to end with a completed pattern
• Automatic drop feed on screen
• Lock key for Utility and Decorative stitches
• Reinforcement priority settings
• Lateral and diagonal feeding
• Variable needle positions
• Fully automatic built-in darning
• Twin needle settings

CONVENIENT SEWING FEATURES

• Larger sewing bed and workspace with 13.1" to the right of the needle
• Frosted surface finish on machine bed
• Convenient one-touch buttons for
• Start/Stop
• Reverse sewing
• Reinforcement key
• Needle up/down
• Thread cutter
• Automatic presser foot lift
• Automatic needle threading
• Sewing speed control doubles as width control
• Quick-Set, Top-Loading bobbin with sensor
• Quick-Set Independent bobbin winding system with
• 5 Adjustable speed settings
• 5 Variable bobbin filling settings
• One finger removable needle plate for easy access cleaning
• Ergonomic 3-position, adjustable knee lift with extra high presser foot lift - 10mm Automatic and 13mm Manual
• Programmable 3-step needle up/down
• Adjustable volume with 5 settings
• Automatic thread cutter (with on/off capability)
• Needle plate with scale in inches and centimeters and additional guideline markings
• Free arm
• Foldable king two-spool thread stand attaches magnetically to machine lid
• Two accessory storage compartments in sewing tray
• Enhanced Accessory Storage Box with 3 interchangeable trays
• Compatible with optional Multi-Function Foot Control

• Dual Stylus and Holder
• Adjustable knee lifter with 3-position handle
• 17 Presser feet
• 1/4" Quilting foot with a guide
• Blind stitch
• Button fitting
• Camera Detecting
• Buttonhole with stabilization plate
• Couching Dual Feed
• Digital Dual-Feed System
• Embroidery foot "W"
• Embroidery couching Y
• Free-motion echo
• Free-motion open toe quilting
• Free-motion quilting
• General purpose zigzag
• Monogramming
• Overcasting
• Straight Stitch
• Zipper
• Easy-lock accessory case for presser foot storage with 3 interchangeable trays
• 2 Thread king spool stand for larger cones
• Straight stitch needle plate
• Bobbin case and cover for embroidery
• Bobbin Covers with and without markings
• Alternate bobbin case for use with pre-wound bobbins

• Bobbin center pin
• Embroidery bobbin thread
• Bobbins
• Embroidery Positioning Stickers (2 Sheets)
• White Needle calibration stickers
• Multi-position screwdriver
• Presser foot adaptor
• Seam ripper
• Scissors
• Eyelet Punch
• Spool nets (2)
• Foot control
• Twin needle
• Scanning frame with magnets
• Embroidery hoops
• 10-5/8" x 16” (272mm x 408mm)
• 10-5/8” x 10-5/8” (272mm x 272mm)
• 5" x 7" (130mm x 180mm)
• 4" x 4” (100mm x 100mm)
• Yarn guide for sewing couching
• Yarn guide for embroidery couching
• Yarn threader
• End-point stickers (4 sheets, 243 stickers per sheet)
