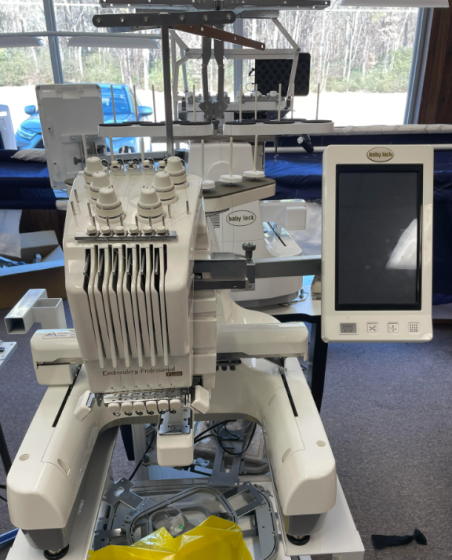

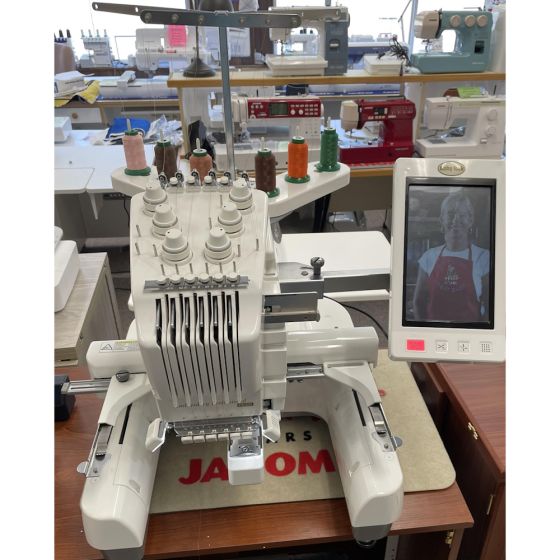

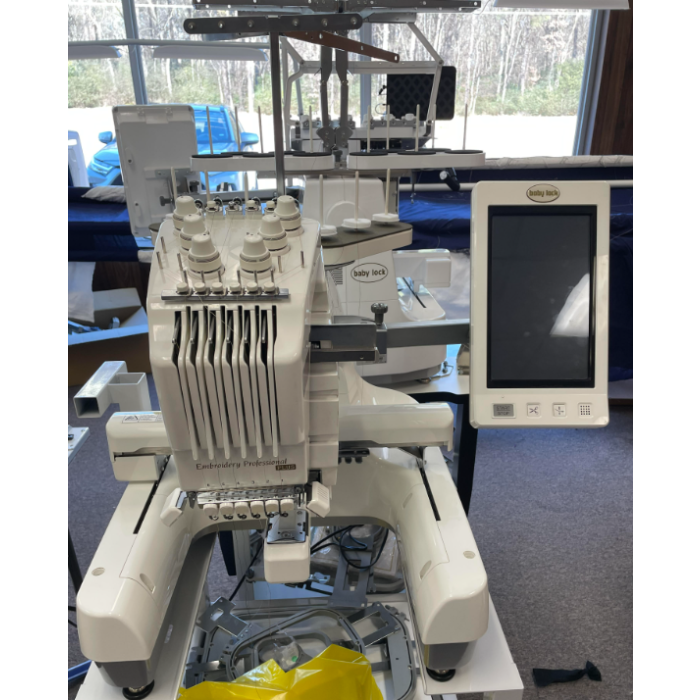

Baby Lock Array 6 Needle Commercial Embroidery Machine BMP9 Recent Trade

This Baby Lock Array BMP9 is a recent trade taken in May of 2023.  It has been serviced and has 9,022,335 stitches on it.

Our staff will be happy to answer your questions on this machine.

THE BABY LOCK ARRAY BMP9 MULTI-NEEDLE EMBROIDERY MACHINE FEATURES INCLUDE:

• Major Features

  • 6 Needles. 1 position for each needle.
  • Maximum speed is 1,000 stitches per minute.
  • Embroiders up to 7-7/8 inch x 11-3/4 inch (200mm x 300mm) embroidery field.
  • Stitch reading capacity.
  • 500,000 Stitches per design. Or
  • 500 Color changes. Or
  • 100 Combined designs.

  Customizing Features

  • Built-in embroidery designs.
  • 60 Designs.
  • 28 Fonts including large floral alphabet, Baby Lock exclusive script and Greek letters.
  • 3 Monogram designs with fonts frames.
  • 120 Frame combinations.
  • Combine embroidery designs on screen.
  • Character / text array function.
  • Character spacing.
  • Pattern rotation (1 degree, 10 degrees, and 90 degrees).
  • Design size change (10% reduction and 20% enlargement) on most designs.
  • Needle forward and reverse position placement. 1, 10, or 100 stitch increments.
  • Easy-to-use switch spool key to rotate color spools on screen.
  • Design duplication up to 20 times in both directions.
  • Automatic appliqué stitching.
  • Automatic basting.
  • Mirror imaging.
  • Increase design thumbnail from 100% to 150% for easy viewing.
  • Change color selections within designs.
  • Continuous border capabilities and color sorting on border designs.
  • Monochrome option for embroidery designs.
  • Short stitch delete.
  • Instant needle edge placement (8 starting and 8 ending positions).
  • Thread color display in 6 options.
  • Custom color displays in 3 options.
  • Original Palette.
  • Custom Palette 1.
  • Custom Palette 2.
  • Embroidery fields (4 hoops included).
  • 7-7/8 inch x 11-3/4 inch (200mm x 300mm).
  • 5-1/8 inch x 7-1/8 inch (130mm x 180mm).
  • 4 inch x 4 inch (100mm x 100mm).
  • 1-1/2 inch x 2-3/8 inch (40mm x 60mm).
  • Hoop sensor advises hoop size for design chosen.
  • On-screen count and running time system.

  Convenience Features

  • Increased CPU processing speed. Three times faster than the BMP8.
  • Built-in memory: 1.7MB.
  • Bobbin system: front loading, vertical rotary hook.
  • Uses pre-wound bobbins.
  • Push button, automatic needle threader.
  • 2 LED lights to illuminate work area.
  • Upper thread breakage sensors.
  • Manual tension control.
  • Automatic thread trimmer (upper and lower).
  • Start / Stop button with lock feature.
  • On-screen speed control while stitching.
  • Change screen and thumbnail background color.
  • Built-in stylus holder with stylus.
