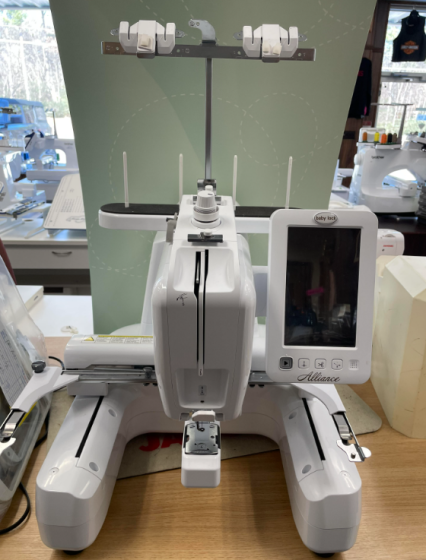

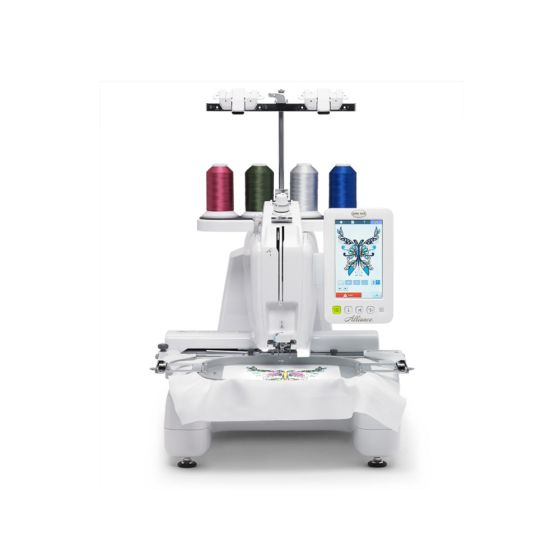

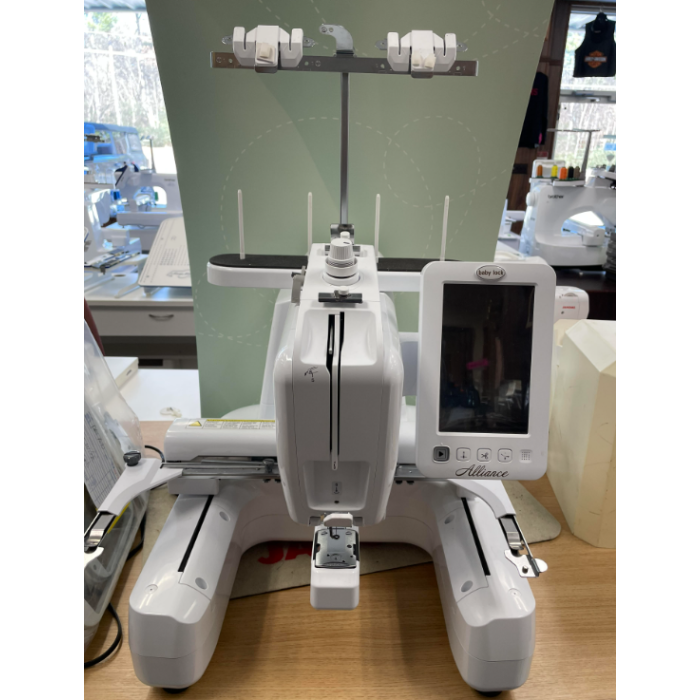

Baby Lock Alliance Embroidery Machine Open Box

Technology Features

• TruViewTM LCD Color Touch Screen:
  • Shows 260,000 colors
  • Measures 7” diagonally
  • Adjustable screen brightness
  • Clock and Date
  • Design placement using drag and drop capabilities
  • Estimated embroidery time display and stitch count
  • Needle advancement (1, 10, 100 or 500 stitch increments)
  • Measurements displayed in inches or millimeters
  • Color separation
  • Thread color indicator
  • On-screen hoop size indicator o 300 Color names
• Needle Beam for precise alignment

Software/Connectivity

• Optional External USB 1GB Flash Drive compatible up to 32GB
• 2 USB drives; 1 (Type A) drives, version 2.0 connects with flash drives and CD- ROM drives and 1 (Type B) USB direct connects to a PC
• Reads multiple formats (PES, PEC, DST, PHC)
• Upgradeable through USB connection or removable flash drive

Support Features

• Built-in operation guide
• Built-in help messages
• Auto save feature - automatically saves last design when power is turned off or a power failure occurs
• Shipping weight (91 lbs.)
• Machine weight (68 lbs. or 31 kg.)
• Warranty
• 25-year product casting o 5-year circuit boards
• 5-year electrical
• 2-year parts
• 1-year labor
• Optional Gold Standard Comprehensive Care Program available
• Optional accessories available
• Ken's Sewing Center provides support for the life you own the machine.

Customizing Features

• Built-in embroidery designs
• 125 Designs
• 25 Fonts, including large floral alphabet, Baby Lock exclusive script, Greek letters and large applique alphabet
• 140 Frame combinations
• Combine embroidery designs on screen
• Character/text array function
• Multi-line Text
• Character spacing
• Change embroidery position using arrow keys
• Pattern rotation (1°, 10° and 90°)
• Design size change (10% reduction and 20% enlargement) on most designs
• Needle forward and reverse position placement (1, 10, 100 or 500 stitch increments) and by color
• Design duplication
• Color sorting on non-overlapping designs
• Automatic basting
• Mirror imaging
• Increase design thumbnail from 100% to 150% for easy viewing
• Change color selections within designs
• Continuous border capabilities and color sorting on border designs
• Monochrome option for embroidery designs
• Instant needle edge placement (9 starting and 9 ending positions)
• Custom color displays in 3 options: Original Palette, Custom Palette 1, Custom Palette 2
• 6 Embroidery hoops, including the largest 8” x 8” (200mm x 200mm)
• Hoop sensor advises hoop size for design chosen
• On-screen count, version number and running time system

Semi-industrial Features

• Single-needle machine
• Maximum embroidery speed 1,000 stitches per minute
• Embroiders up to 8” x 8” (200mm x 200mm) embroidery field
• Stitch reading capacity:
• 500,000 Stitches per design, or 127 Color changes

Convenience Features

• Built-in memory (1MB)
• Bobbin system: front loading, vertical rotary hook
• Quick-Set, built-in bobbin winder with independent motor
• Can use pre-wound bobbins (Class "L")
• Push button, automatic needle threader
• 2 LED lights to illuminate work area
• Upper thread breakage sensors
• Manual tension controls
• Automatic thread trimmer (upper and lower)
• Start/Stop button with lock feature
• On-screen speed control while stitching
• Change screen and thumbnail back-ground color
• 4-Thread spool stand to pre-thread standby colors for easy thread changes
• Built-in holder with stylus

Included Accessories

• Touch pen (stylus)
• Accessory Case
• Prewound bobbins
• Metal bobbins
• USB cable
• Seam ripper
• Scissors
• Tweezers
• Screwdrivers
• Spool
• Oiler
• Tweezers
• Spool caps
• Cleaning brush
• Embroidery frame holder "a"
• Embroidery frame holder "e"
• Embroidery hoops:
• 8” x 8” hoop (200mm x 200mm) #ALF200
• 4” x 4” hoop (100mm x 100mm) #EPF100
• 1-5/8” x 2-3/4” hoop (41mm x 70mm) #ALF70
• 2” x 2” hoop (50mm x 50mm) #ALF50
• 1-1/2” x 1-3/4” hoop (38mm x 44mm) #ALF44
• 1-15/16” x 2-15/16” hoop (33mm x 75mm) #ALF74
